Features: 8-bit single chip microcomputer TLCS-870/X Series
Instruction execution time: 0.32 s (at 12.5 MHz),
122 s (at 32.768 kHz)
842 basic instructions
General-purpose register: 16 banks
15 interrupt sources (External: 6, Internal: 9)
• All sources have independent latches each
• Edge-selectable external interrupts with noise reject
• High-speed task switching by register bank changeover
Input/Output ports (71 pins)
16-bit timer/counters: 2 channels
• TC1: Timer, Event counter, PPG (Programable Pulse Generator) output, Pulse width measurement, External trigger timer, Window modes.
• TC2: Timer, Eventcounter, Window modes. 8-bit timer/counters: 2 channels
• TC3: Timer, Eventcounter, Capture (Pulse width/duty measurment)
• TC4: Timer, PWM output, PDO (Programmable Divider Output) mode
Time base timer
Divider output function
Watchdog timer
• Interrupt source/reset output (programmable)
8-bit serial interface: 1 channel
• With 8 bytes transmit/receive data buffer
• Internal/External serial clock, and 4/8-bit mode
Serial bus interface
• 8-bit SIO/I2C bus mode
8-bit successive approximate type AD converter with sample and hold
• Analog inputs: 12 channels conversion time: 23 s at 8 MHz (High-speed conversion mode),
59 s at 12.5 MHz (Low-speed conversion mode)
Vacuum fluorescent tube driver (Automatic display)
• High breakdown voltage ports (Max 40 V * 37 bits)
• Programmable grid scan output
Dual clock operation
• Single/Dual-clock mode (selection)
Five power saving operating modes
• STOP mode: Oscillation stops. Battery/Capacitor back-up. Release by stop pin input.
• SLOW mode: Low power consumption operation using low-frequency clock.
• IDLE1 mode: CPU stops, and Peripherals operate using high-frequency clock. Release by interrupts.
• IDLE2 mode: CPU stops, and Peripherals operate using high-and low-frequency clock. Release by interrupts.
• SLEEP mode: CPU stops, and Peripherals operate using low-frequency clock. Release by interrupts.
Wide operating voltage: 2.7 to 5.5 V at 32.8 kHz, 4.5 to 5.5 V at 12.5 MHz/32.8 kHz
Emulation Pod: BM88CU74F0A

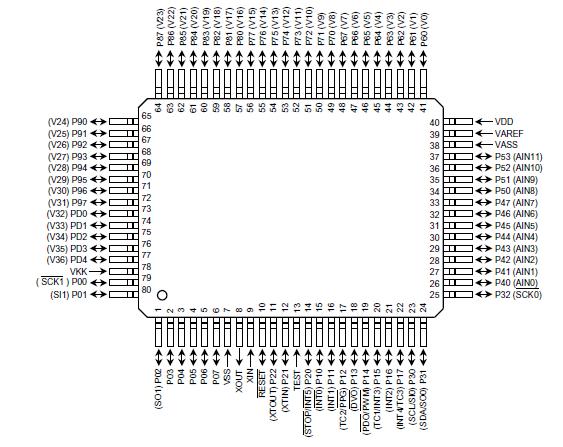

Pinout
Specifications
|
Parameter |
Symbol |
Pins |
Rating |
Unit |
| Supply voltage |
VDD |
|
-0.3 to 6.5 |
V |
| Input voltage |
VIN |
|
-0.3 to VDD+0.3 |
| Output voltage |
VOUT1 |
P2, P3 (at open-drain) |
-0.3 to VDD+0.3 |
|
VOUT2 |
P6, P7, P8, P9, PD |
VDD-40 to VDD+0.3 |
| Output current (Per 1 pin) |
IOUT1 |
P0, P1, P2, P3, P4, P5 Ports |
3.2 |
mA |
|
IOUT2 |
P6, P7, P8, P9, PD Ports |
-25 |
| Output current (Total) |
|
P0, P1, P3, P4, P5 Ports |
-40 |
|
IOUT2 |
P0, P1, P2, P3, P4, P5 Ports |
120 |
|
IOUT3 |
P6, P7, P8, P9, PD Ports |
-160 |
| Power dissipation [Topr=25°C] |
PD
(Note 2) |
|
1200 |
mW |
| Soldering temperature (time) |
Tsld |
|
260 (10 s) |
°C |
| Storage temperature |
Tstg |
|
-55 to 125 |
| Operating temperature |
Topr |
|
-30 to 70 |
Note 1: The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensurethat no absolute maximum rating value will ever be exceeded.
Note 2: Power Dissipation (PD); For PD, it is necessary to decrease 14.3 mw/°C.
DescriptionThe TMP88CU74 are the high speed and high performance 8-bit single chip microcomputers. These MCU contain 8-bit AD conversion inputs and a VFT (Vacuum Fluorescent Tube) driver on a chip.
