Features:

􀙟 8-bit single chip microcomputer TLCS-870/X Series
􀙟 Instruction execution time: 0.25 􀁐s (at 16 MHz)
􀙟842 basic instructions
􀁸􀀃` Multiplication and Division (8 bits 􀁵 8 bits, 16 bits 􀁵 8 bits, 16 bits/8 bits)
􀁸􀀃 `Bit manipulations (Set/Clear/Complement/Move/Test/Exclusive or)
􀁸􀀃 `16-bit data and 20-bit data operations
􀁸􀀃 `1-byte jump/subroutine-call (Short relative jump/Vector call)
􀙟 I/O ports: Maximum 33 (High current output: 4)
􀙟 15 interrupt sources: External 6, Internal 10
􀁸􀀃 `All sources have independent latches each, and nested interrupt control is available.
􀁸􀀃 `Edge-selectable external interrupts with noise reject
􀁸􀀃 `High-speed task switching by register bank changeover
􀙟 ROM corrective function
􀙟 Two 16-bit timer/counters: TC1, TC2
􀁸􀀃 `Timer, Event-counter, Pulse width measurement, External trigger timer, Window modes
􀙟 Two 8-bit timer/counters: TC3, TC4
􀁸􀀃 `Timer, Event counter, Capture (Pulse width/duty measurement) mode
􀙟 Time base timer (Interrupt frequency: 0.95 Hz to 31250 Hz)
􀙟 Watchdog timer
􀁸􀀃 `Interrupt source/reset output
􀙟 Serial bus interface
􀁸􀀃 `I2C bus, 8-bit SIO mode (Selectable two I/O channels)
􀙟 On-screen display circuit
􀁸􀀃 `Font ROM characters: Mono font 383 characters, color font 96 characters or mono font 447 characters, color font 64 characters
􀁸􀀃 `Characters display: 32 columns 􀁵 12 lines
􀁸􀀃 `Composition: 16 􀁵 18 dots
􀁸􀀃 `Size of character: 4 kinds (line by line)
􀁸􀀃 `Color of character: 8 or 27 kinds (character by character)
􀁸􀀃 `Variable display position: Horizontal 256 steps, Vertical 625 steps
􀁸􀀃 `Fringing, Smoothing, Slant, Underline , Blinking function
􀙟 Jitter elimination
􀙟 DA conversion (Pulse Width Modulation) outputs
􀁸􀀃 `14/12-bit resolution (2 channels)
􀁸􀀃 `12-bit resolution (2 channels)
􀙟 8-bit successive approximate type AD converter with sample and hold
􀙟 High current output: 1 pin (typ. 20 mA)
􀙟 Remote control signal preprocessor
􀙟 Two power saving operating modes
􀁸􀀃 `STOP mode: Oscillation stops. Battery/Capacitor back-up. Port output hold/high-impedance.
􀁸􀀃 `IDLE mode: CPU stops, and Peripherals operate using high-frequency clock. Release by interrupts.
􀙟 Operating voltage: 4.5 to 5.5 V at 16 MHz
􀙟 Emulation POD: BM88CS34N0A-M15


Pinout

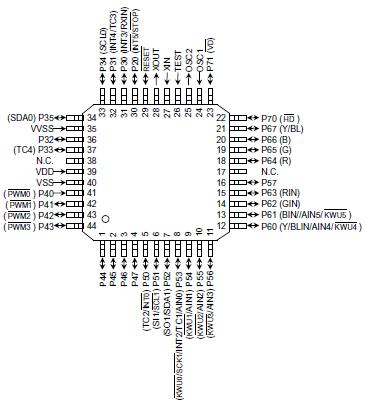

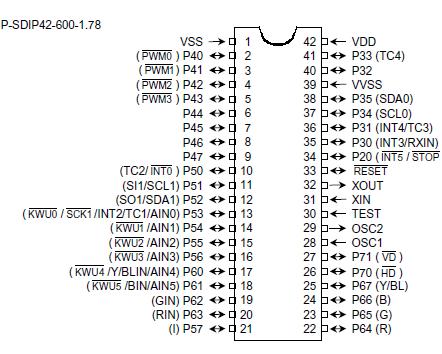

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Pins
Rating
Unit
Supply voltage
VDD
 -
�-0.3 to 6.5
V
Input voltage
VIN
 -
�-0.3 to VDD+0.3
Output voltage
VOUT1
 -
-0.3 to VDD+0.3
Output current (Per 1 pin)
IOUT1
 Ports P2, P3, P4, P5, P61 to P67, P7
3.2
mA
IOUT2
 Ports P60
30
Output current (Total)
􀀶
IOUT1
 Ports P2, P3, P4, P5, P61 to P67, P7
30
IOUT2
 Ports P60
30
Power dissipation [Topr- 70°C]
PD
400
mW
Soldering temperature (time)
Tsld
260 (10 s)
°C
Storage temperature
Tstg
�-55 to 125
Operating temperature
Topr
-30 to 70


Note: The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.




Description

The TMP88CS34/CP34 is the high speed and high performance 8-bit single chip microcomputers. This MCU contain CPU core, ROM, RAM, input/output ports, four Multi-function timer/counters, serial bus interface, on-screen display, PWM output, 8-bit AD converter, and remote control signal preprocessor on chip.
