TMP87PS39F

PinoutSpecifications Parameter Symbol Pins Rating Unit Supply voltage VDD -0.3 to 6.5 V Input voltage VIN -0.3 to VDD+0.3 Output voltage VOUT1 -0.3 to VDD+0.3 Output current (Per 1 pin) IOUT1 Ports P0, P1, P2, P3, P4, P5,P64 to P67...

product image

TMP87PS39F Picture
See larger image
SeekIC No. : 004524652 Detail

TMP87PS39F: PinoutSpecifications Parameter Symbol Pins Rating Unit Supply voltage VDD -0.3 to 6.5 V Input voltage VIN -0.3 to VDD+0.3 Output voltage VOUT1 ...

TMP87PS39F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP87PS39F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

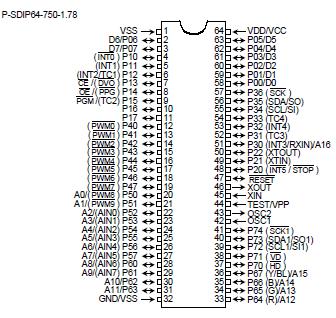

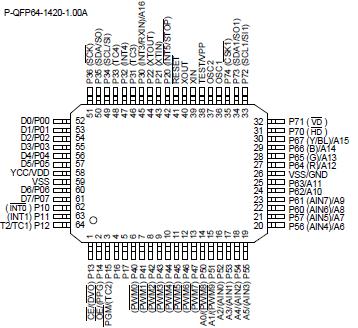

Connection Diagram Connection Diagram


Specifications

Parameter
Symbol
Pins
Rating
Unit
Supply voltage
VDD

-0.3 to 6.5
V
Input voltage
VIN

-0.3 to VDD+0.3
Output voltage
VOUT1

-0.3 to VDD+0.3
Output current (Per 1 pin)
IOUT1
 Ports P0, P1, P2, P3, P4, P5,
P64 to P67, P7
3.2
mA
IOUT2
 Ports P60 to P63
30
Output current (Total)
IOUT1
 Ports P0, P1, P2, P3, P4, P5,
P64 to P67, P7
120
IOUT2
 Ports P60 to P63
120
Power dissipation [Topr=70°C]
PD
600
mW
Soldering temperature (time)
Tsld
260 (10 s)
°C
Storage temperature
Tstg
-55 to 125
Operating temperature
Topr
-30 to 70


Note: The absolute maximum ratings are rated values which must not be exceeded during operation, ven for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is xceeded, a device may break down or its performance may be degraded, causing it to catch fire or xplode resulting in injury to the user. Thus, when designing products which include this device, nsure that no absolute maximum rating value will ever be exceeded.




Description

The TMP87PS39 is a One-Time PROM microcontroller with low-power 543 Kbits (a 60 Kbytes rogram memory and a 256 characters OSD font memory) electrically programmable read only emory for the TMP87CS39 system evaluation. The TMP87PS39 is pin compatible with the MP87CS39. The operations possible with the TMP87CS39 can be performed by writing programs nd OSD character data to PROM. The TMP87PS39 can write and verify in the same way as the C571000 using an adaptor socket BM11118/BM11138 and an EPROM programmer.
