TMP86FS49BUG

Core Size: 8-Bit
Program Memory Type: FLASH
EEPROM Size: -
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C
Speed: 16MHz
Packaging: Tray
RAM Size: 2K x 8
Package / Case: 64-LQFP
Number of I /O: 56
Data Converters: A/D 16x10b
Voltage - Supply (Vcc/Vdd): 2.7 V ~ 5.5 V
Connectivity: I²C, SIO, UART/USART
Program Memory Size: 60KB (60K x 8)
Manufacturer: Toshiba
Series: TLCS-870/C
Core Processor: 870/C
Peripherals: LED, PWM, WDT


Features:

1. 8-bit single chip microcomputer TLCS-870/C series
- Instruction execution time :
0.25 s (at 16 MHz)
122 s (at 32.768 kHz)
- 132 types & 731 basic instructions
2. 24interrupt sources (External : 5 Internal : 19)
3. Input / Output ports (56 pins)
Large current output: 13pins (Typ. 20mA), LED direct drive
4. Watchdog Timer
5. Prescaler
- Time base timer
- Divider output function
6. 16-bit timer counter: 1 ch
- Timer, External trigger, Window, Pulse width measurement,Event counter, Programmable pulse generate (PPG) modes
7. 16-bit timer counter: 1 ch
- Timer, Event counter, Window modes
8. 8-bit timer counter : 4 ch
- Timer, Event counter, Programmable divider output (PDO),
Pulse width modulation (PWM) output,
Programmable pulse generation (PPG) modes
9. 8-bit UART : 2 ch
10. High-Speed SIO: 2ch
11. Serial Bus Interface(I2C Bus): 1ch
12. 10-bit successive approximation type AD converter
- Analog input: 16 ch
13. Key-on wakeup : 4 ch
14. Clock operation
Single clock mode
Dual clock mode
15. Low power consumption operation
STOP mode: Oscillation stops. (Battery/Capacitor back-up.)
SLOW1 mode: Low power consumption operation using low-frequency clock.(High-frequency clock stop.)
SLOW2 mode: Low power consumption operation using low-frequency clock.(High-frequency clock oscillate.)
IDLE0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using high frequency clock. Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
IDLE1 mode: CPU stops and peripherals operate using high frequency clock. Release by interruputs(CPU restarts).
IDLE2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruputs. (CPU restarts).
SLEEP0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using low frequency clock.Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
SLEEP1 mode: CPU stops, and peripherals operate using low frequency clock. Release by interruput.(CPU restarts).
SLEEP2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruput.
16.Wide operation voltage:
4.5 V to 5.5 V at 16MHz /32.768 kHz
2.7 V to 5.5 V at 8 MHz /32.768 kHz

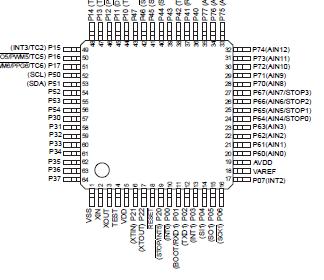

Pinout




Specifications

The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.

Parameter	Symbol	Pins	Ratings	Unit
Supply voltage	VDD		−0.3 to 6.0	V
Input voltage	VIN		−0.3 to VDD + 0.3	V
Output voltage	VOUT1		−0.3 to VDD + 0.3	V
Output current (Per 1 pin)	IOUT1	P0, P1, P4, P6, P7 ports	-1.8	mA
	IOUT2	P0, P1, P2, P4, P6, P7 ports	3.2
	IOUT3	P3, P5 ports	30
Output current (Total)	IOUT1	P0, P1, P2, P4, P6, P7 ports	60
	IOUT2	P3, P5 ports	80
Power dissipation [Topr = 85°C]	PD		250	mW
Soldering temperature (Time)	Tsld		260 (10 s)
Storage temperature	Tstg		−55 to 125
Operating temperature	Topr		−40 to 85

Description

The TMP86FS49BUG is a single-chip 8-bit high-speed and high-functionality microcomputer incorporating 61440 bytes of Flash Memory. It is pin-compatible with the TMP86CM49UG/CS49UG (Mask ROM version). The TMP86FS49BUG can realize operations equivalent to those of the TMP86CM49UG/CS49UG by programming the on-chip Flash Memory.

Parameters:

Technical/Catalog Information	TMP86FS49BUG
Vendor	Toshiba
Category	Integrated Circuits (ICs)
Program Memory Size	60KB (60K x 8)
RAM Size	2K x 8
Number of I /O	56
Package / Case	64-LQFP
Speed	16MHz
Controller Series	TLCS-870/C
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	870/C
Data Converters	A/D 16x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, SIO, UART/USART
Peripherals	LED, PWM, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TMP86FS49BUG TMP86FS49BUG
