Core Size: 8-Bit
Program Memory Type: FLASH
EEPROM Size: -
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C
Speed: 16MHz
Voltage - Supply (Vcc/Vdd): 1.8 V ~ 3.6 V
Data Converters: A/D 8x10b
Packaging: Tray
RAM Size: 2K x 8
Number of I /O: 54
Peripherals: LCD, PWM, WDT
Connectivity: SIO, UART/USART
Program Memory Size: 48KB (48K x 8)
Package / Case: 80-QFP
Manufacturer: Toshiba
Series: TLCS-870/C
Core Processor: 870/C

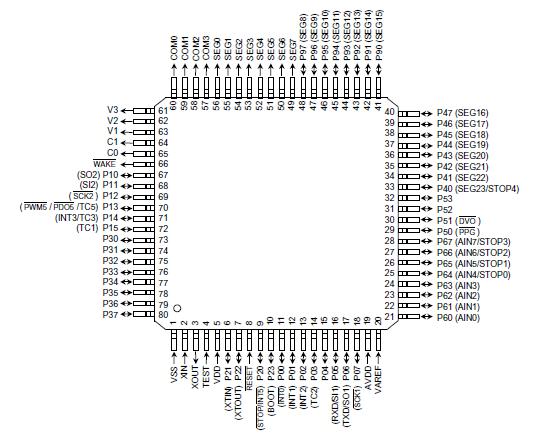

Pinout
Specifications
|
Parameter |
Symbol |
Pins |
Rating |
Unit |
| Supply voltage |
VDD |
|
�-0.3 to 4.0 |
V |
| Input voltage |
VIN |
|
�-0.3 to VDD+0.3 |
| Output voltage |
VOUT1 |
Except V3 pin |
-0.3 to VDD+0.3 |
|
VOUT2 |
V3 pin |
-0.3 to 4.0 |
| Output current (Per 1 pin) |
IOUT1 |
P0, P1, P20, P23, P3, P5, P6 Ports |
-2 |
mA |
|
IOUT2 |
P0, P1, P2, P4, P6, P9, WAKE Ports |
2 |
|
IOUT3 |
P3, P5 Ports |
10 |
| Output current (Total) |
|
P0, P1, P20, P23, P3, P5, P6 Ports |
-80 |
|
IOUT2 |
P0, P1, P2, P4, P6, P9, WAKE Ports |
80 |
|
IOUT3 |
P3, P5 Ports |
30 |
| Power dissipation [Topr- 85°C] |
PD |
|
350 |
mW |
| Soldering temperature (time) |
Tsld |
|
260 (10 s) |
°C |
| Storage temperature |
Tstg |
|
�-55 to 125 |
| Operating temperature |
Topr |
|
-40 to 85 |
Note: The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.
DescriptionThe TMP86FP24 is a Flash type MCU which includes 48 K bytes Flash memory. It is a pin compatible with a mask ROM product of the TMP86CP24. Writing the program to built-in Flash memory, theTMP86FP24 operates as the same way as the TMP86CP24. The TMP86FP24 has a 2 K bytes BOOT ROM (masked ROM) for programming to Flash memory.
Parameters: | Technical/Catalog Information | TMP86FP24F |
| Vendor | Toshiba |
| Category | Integrated Circuits (ICs) |
| Program Memory Size | 48KB (48K x 8) |
| RAM Size | 2K x 8 |
| Number of I /O | 54 |
| Package / Case | 80-LQFP |
| Speed | 16MHz |
| Controller Series | TLCS-870/C |
| Oscillator Type | Internal |
| Packaging | Tray |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 870/C |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Operating Temperature | -40°C ~ 85°C |
| Connectivity | SIO, UART/USART |
| Peripherals | LCD, PWM, WDT |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TMP86FP24F
TMP86FP24F
|
TMP86FP24F Data Sheet
