Features: 8-bit single chip microcomputer TLCS-870/C series
Instruction execution time: 0.25 s (at 16 MHz)
122 s (at 32.768 kHz)
132 types and 731 basic instructions
20 interrupt sources (External: 5, Internal: 15)
Input/Output ports (54 pins)
16-bit timer counter: 2 ch
`Timer, Event counter, Pulse width measurement, External trigger timer, Window, PPG output modes
8-bit timer counter: 2 ch
`Timer, Event counter, PWM output, Programmable divider output, Capture modes
Time Base Timer
Divider output function
Watchdog Timer
`Interrupt source/internal reset generate (programmable)
Serial interface
`UART: 1ch (The function port for UART is also used as SIO function.)
`SIO: 2ch
`I2C bus: 1ch
10-bit successive approximation type AD converter
`Analog input: 16 ch
Four Key-On Wake-Up pins
Dual clock operation
`Single/Dual-clock mode
Nine power saving operating modes
`STOP mode: Oscillation stops. Battery/Capacitor back-up. Port output hold/High-impedance.
`SLOW 1, 2 mode: Low power consumption operation using low-frequency clock (32.768 kHz)
`IDLE 0 mode: CPU stops, and peripherals operate using high-frequency clock of Time-Base-Timer. Release by falling edge of TBTCR TBTCK setting.
`IDLE 1 mode: CPU stops, and peripherals operate using high-frequency clock. Release by interruputs.
`IDLE 2 mode: CPU stops, and peripherals operate using high and low frequency clock. Release by interruputs.
`SLEEP 0 mode: CPU stops, and peripherals operate using low-frequency clock of Time-Base-Timer. Release by falling edge of TBTCR TBTCK setting.
`SLEEP 1 mode: CPU stops, and peripherals operate using low-frequency clock. Release by interrupts.
`SLEEP 2 mode: CPU stops, and peripherals operate using high and low frequency clock. Release by interrupts.
Wide operating voltage: 1.8 to 3.6 V at 8 MHz/32.768 kHz
2.7 to 3.6 V at 16 MHz/32.768 kHz

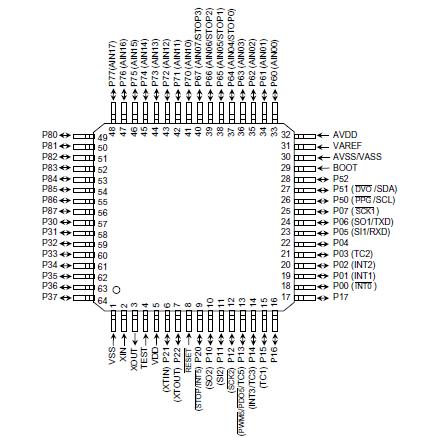

Pinout
Specifications
|
Parameter |
Symbol |
Pins |
Rating |
Unit |
| Supply voltage |
VDD |
|
�-0.3 to 4.0 |
V |
| Input voltage |
VIN |
|
�-0.3 to VDD+0.3 |
| Output voltage |
VOUT1 |
|
-0.3 to VDD+0.3 |
|
VOUT2 |
|
-0.3 to 4.0 |
| Output current (Per 1 pin) |
IOUT1 |
P0, P1, P20, P3, P5, P6, P7, P8 Ports |
-2 |
mA |
|
IOUT2 |
P0, P1, P2, P4, P6, P7, P8, Ports |
2 |
|
IOUT3 |
P3, P5 Ports |
10 |
| Output current (Total) |
|
P0, P1, P20, P3, P5, P6, P7, P8 Ports |
-80 |
|
IOUT2 |
P0, P1, P2, P4, P6, P7, P8, Ports |
80 |
|
IOUT3 |
P3, P5 Ports |
30 |
| Power dissipation [Topr- 85°C] |
PD |
|
350 |
mW |
| Soldering temperature (time) |
Tsld |
|
260 (10 s) |
°C |
| Storage temperature |
Tstg |
|
�-55 to 125 |
| Operating temperature |
Topr |
|
-40 to 85 |
Note: The absolute maximum ratings are rated values which must not be exceeded during operation,even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating isexceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.
DescriptionThe TMP86FM48 is the high-speed, high-performance and low power consumption 8-bit microcomputer, including FLASH, RAM, multi-function timer/counter, serial interface (UART, HSIO, I2C), a 10-bit AD converter and two clock generators on chip.
