Features:

1. 8-bit single chip microcomputer TLCS-870/C series - Instruction execution time : 0.25 s (at 16 MHz) 122 s (at 32.768 kHz) - 132 types & 731 basic instructions
2. 19interrupt sources (External : 5 Internal : 14)
3. Input / Output ports (39 pins)
4. Watchdog Timer
5. Prescaler - Time base timer - Divider output function
6. 18-bit Timer/Counter : 1ch - Timer Mode - Event Counter Mode - Pulse Width Measurement Mode - Frequency Measurement Mode
7. 8-bit timer counter : 4 ch - Timer, Event counter, Programmable divider output (PDO), Pulse width modulation (PWM) output, Programmable pulse generation (PPG) modes
8. 8-bit UART/SIO : 1 ch
9. 10-bit successive approximation type AD converter - Analog input: 8 ch
10. Key-on wakeup : 4 ch
11. LCD driver/controller Built-in voltage booster for LCD driver With display memory LCD direct drive capability (MAX 32 seg * 4 com) 1/4,1/3,1/2duties or static drive are programmably selectable
12. Clock operation Single clock mode Dual clock mode
13. Low power consumption operation STOP mode: Oscillation stops. (Battery/Capacitor back-up.) SLOW1 mode: Low power consumption operation using low-frequency clock.(High-frequency clock stop.) SLOW2 mode: Low power consumption operation using low-frequency clock.(High-frequency clock oscillate.) IDLE0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using high frequency clock. Release by falling edge of the source clock which is set by TBTCR<TBTCK>. IDLE1 mode: CPU stops and peripherals operate using high frequency clock. Release by interruputs( CPU restarts). IDLE2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruputs. (CPU restarts). SLEEP0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using low frequency clock.Release by falling edge of the source clock which is set by TBTCR<TBTCK>. SLEEP1 mode: CPU stops, and peripherals operate using low frequency clock. Release by interruput.(
CPU restarts). SLEEP2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by
interruput.
14.Wide operation voltage: 2.7 V to 3.6 V at 16MHz /32.768 kHz 1.8 V to 3.6 V at 8 MHz /32.768 kHz




Pinout

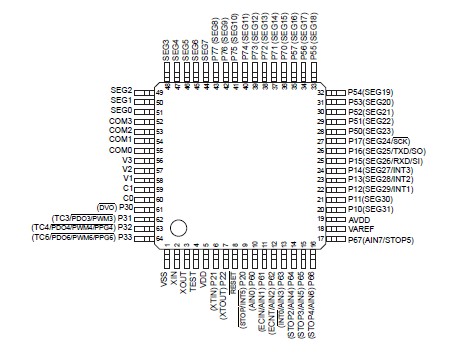

  Connection Diagram


Specifications

The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down
or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.

Parameter
Symbol
Pins
Ratings
Unit
Supply voltage
VDD
VLCD

V3 pin
−0.3 to 4.0
−0.3 to 4.0
V
Input voltage
VIN
−0.3 to VDD + 0.3
V
Output voltage
VOUT1
−0.3 to VDD + 0.3
V
Output current (Per 1 pin)
IOUT1
IOUT2
IOUT3
P3, P6 port
P1, P2, P5, P6, P7 port
P3 port
−1.8
3.2
30
mA
Output current (Total)
IOUT2
IOUT3
P1, P2, P5, P6, P7 port
P3 port
60
80
Power dissipation [Topr = 85°C]
PD
350
mW
Soldering temperature (Time)
Tsld
260 (10 s)
°C
Storage temperature
Tstg
−55 to 125
Operating temperature
Topr
−40 to 85
