Product Details

Description



Features:

1. 8-bit single chip microcomputer TLCS-870/C series
- Instruction execution time :
0.25 s (at 16 MHz)
122 s (at 32.768 kHz)
- 132 types & 731 basic instructions
2. 19interrupt sources (External : 5 Internal : 14)
3. Input / Output ports (39 pins)
Large current output: 4pins (Typ. 20mA), LED direct drive
4. Watchdog Timer
5. Prescaler
- Time base timer
- Divider output function
6. 18-bit Timer/Counter : 1ch
- Timer Mode
- Event Counter Mode
- Pulse Width Measurement Mode
- Frequency Measurement Mode
7. 8-bit timer counter : 4 ch
- Timer, Event counter, Programmable divider output (PDO),
Pulse width modulation (PWM) output,Programmable pulse generation (PPG) modes
8. 8-bit UART/SIO : 1 ch
9. 10-bit successive approximation type AD converter
- Analog input: 8 ch
10. Key-on wakeup : 4 ch
11. LCD driver/controller
Built-in voltage booster for LCD driver With display memory
LCD direct drive capability (MAX 32 seg * 4 com)
1/4,1/3,1/2duties or static drive are programmably selectable
12. Clock operation
Single clock mode
Dual clock mode
13. Low power consumption operation
STOP mode: Oscillation stops. (Battery/Capacitor back-up.)
SLOW1 mode: Low power consumption operation using low-frequency clock.(High-frequency clock stop.)
SLOW2 mode: Low power consumption operation using low-frequency clock.(High-frequency clock oscillate.)
IDLE0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using high frequency clock. Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
IDLE1 mode: CPU stops and peripherals operate using high frequency clock. Release by interruputs(CPU restarts).
IDLE2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruputs.(CPU restarts).
SLEEP0 mode: CPU stops, and only the Time-Based-Timer(TBT) on peripherals operate using low frequency clock.Release by falling edge of the source clock which is set by TBTCR<TBTCK>.
SLEEP1 mode: CPU stops, and peripherals operate using low frequency clock. Release by interruput.(CPU restarts).
SLEEP2 mode: CPU stops and peripherals operate using high and low frequency clock. Release by interruput.
14.Wide operation voltage:
4.5 V to 5.5 V at 16MHz /32.768 kHz
2.7 V to 5.5 V at 8 MHz /32.768 kHz
1.8 V to 5.5 V at 4.2MHz /32.768 kHz




Pinout

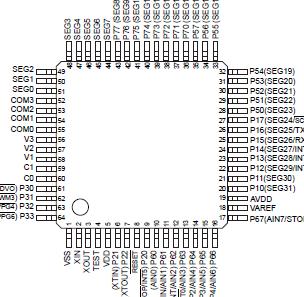

  Connection Diagram


Specifications

The absolute maximum ratings are rated values which must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when  designing products which include this device, ensure that no absolute maximum rating value will ever be exceeded.

Parameter Symbol Pins Ratings Unit
Supply voltage VDD   −0.3 to 6.5 V
Input voltage VIN   −0.3 to VDD + 0.3 V
Output voltage VOUT1   −0.3 to VDD + 0.3 V
Output current (Per 1 pin) IOUT1 P3, P6 port -1.8 mA
IOUT2 P1, P2, P5, P6, P7 port 3.2
IOUT3 P3 port 30
Output current (Total) IOUT2 P1, P2, P5, P6, P7 port 60
IOUT3 P3 port 80
Power dissipation [Topr = 85°C] PD   350 mW
Soldering temperature (Time) Tsld   260 (10 s)
Storage temperature Tstg   −55 to 125
Operating temperature Topr   −40 to 85



Description

The TMP86CH29BUG memory is composed MaskROM, RAM, DBR(Data buffer register) and SFR(Special function register). They are all mapped in 64-Kbyte address space. Figure 2-1 shows the  memory address map.
