TMP86C847IUG

Features: 1. 8-bit single chip microcomputer TLCS-870/C series- Instruction execution time : 0.25 µs (at 16 MHz) 122 µs (at 32.768 kHz)- 132 types & 731 basic instructions2. 18interrupt sources (External : 6 Internal : 12)3. Input / Output ports (35 pins) Large current output: 19pi...

product image

TMP86C847IUG Picture
See larger image
SeekIC No. : 004524540 Detail

TMP86C847IUG: Features: 1. 8-bit single chip microcomputer TLCS-870/C series- Instruction execution time : 0.25 µs (at 16 MHz) 122 µs (at 32.768 kHz)- 132 types & 731 basic instructions2. 18interr...

TMP86C847IUG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP86C847IUG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. 8-bit single chip microcomputer TLCS-870/C series
- Instruction execution time : 0.25 µs (at 16 MHz) 122 µs (at 32.768 kHz)
- 132 types & 731 basic instructions
2. 18interrupt sources (External : 6 Internal : 12)
3. Input / Output ports (35 pins) Large current output: 19pins (Typ. 20mA), LED direct drive
4. Prescaler
- Time base timer
- Divider output function
5. Watchdog Timer
6. 16-bit timer counter: 1 ch
- Timer, External trigger, Window, Pulse width measurement, Event counter, Programmable pulse generate (PPG) modes
7. 8-bit timer counter : 2 ch
- Timer, Event counter, Programmable divider output (PDO), Pulse width modulation (PWM) output, Programmable pulse generation (PPG) modes
8. High-Speed SIO: 1ch


Pinout

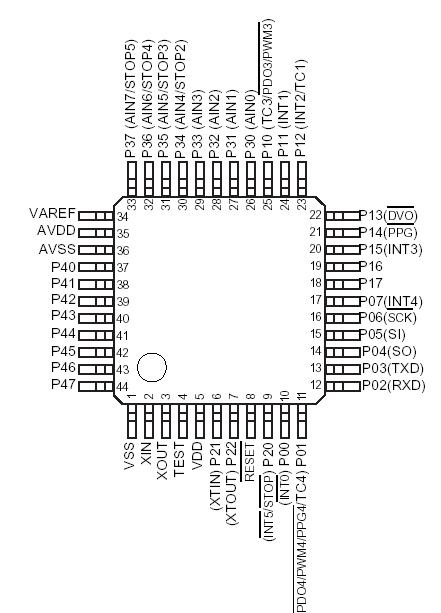

Connection Diagram


Specifications

Parameter Symbol Pins Ratings Unit
Supply voltage VDD   −0.3 to 6.5 V
Input voltage VIN   −0.3 to VDD + 0.3
Output voltage VOUT   −0.3 to VDD + 0.3
Output current (Per 1 pin) IOUT1 P1, P3, P4 port −1.8 mAmW
IOUT2 P1, P3 port 3.2
IOUT3 P0, P2, P4 port 30
Output current (Total) IOUT2 P1, P3 port 60
IOUT3 P0, P2, P4 port 80
Power dissipation [Topr = 85°C] PD   250
Soldering temperature (Time) Tsld   260 (10 s) °C
Storage temperature Tstg   −55 to 150
Operating temperature Topr   −40 to 85
