TMP86C808DMG

Features: 1. 8-bit single chip microcomputer TLCS-870/C series - Instruction execution time : 0.25 µs (at 16 MHz)122 µs (at 32.768 kHz) - 132 types & 731 basic instructions2. 17interrupt sources (External : 5 Internal : 12)3. Input / Output ports (24 pins) Large current output: 8pi...

product image

TMP86C808DMG Picture
See larger image
SeekIC No. : 004524535 Detail

TMP86C808DMG: Features: 1. 8-bit single chip microcomputer TLCS-870/C series - Instruction execution time : 0.25 µs (at 16 MHz)122 µs (at 32.768 kHz) - 132 types & 731 basic instructions2. 17inter...

TMP86C808DMG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP86C808DMG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1. 8-bit single chip microcomputer TLCS-870/C series
      - Instruction execution time :
          0.25 µs (at 16 MHz)
          122 µs (at 32.768 kHz)
      - 132 types & 731 basic instructions
2. 17interrupt sources (External : 5 Internal : 12)
3. Input / Output ports (24 pins)
      Large current output: 8pins (Typ. 20mA), LED direct drive
4. Prescaler
      - Time base timer
      - Divider output function
5. Watchdog Timer
6. 16-bit timer counter: 1 ch
      - Timer, External trigger, Window, Pulse width measurement, Event counter, Programmable pulse generate (PPG) modes
7. 8-bit timer counter : 2 ch
      - Timer, Event counter, Programmable divider output (PDO), Pulse width modulation (PWM) output, Programmable pulse generation (PPG) modes
8. 8-bit UART : 1 ch


Pinout

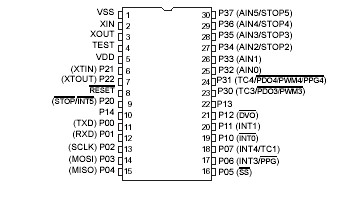

Connection Diagram


Specifications

Parameter
Symbol
 Pins
Ratings
Unit
Supply voltage
VDD

−0.3 to 6.5
V
Input voltage
VIN

−0.3 to VDD + 0.3
Output voltage
VOUT

−0.3 to VDD + 0.3
Output current (Per 1 pin)
IOUT1
 P0, P1, P3 port
−1.8
mA
IOUT2
 P1, P2, P3 port
3.2
IOUT3
 P0 Port
30
Output current (Total)
IOUT1
 P0, P1, P3 port
-30
IOUT2
 P1, P2, P3 port
60
IOUT3
 P0 port
80
Power dissipation [Topr = 85°C]
PD
 SSOP
145
mW
Soldering temperature (Time)
Tsld

260 (10 s)
°C
Storage temperature
Tstg

−55 to 150
Operating temperature
Topr

−40 to 85
