TMP1940FDBF

Features: • The 16-bit ISA is object-code compatible with the code-efficient MIPS16 ASE.• The 32-bit ISA is object-code compatible with the high-performance TX39 family.• Single clock cycle execution for most instructions• 3-operand computational instructions for high instr...

product image

TMP1940FDBF Picture
See larger image
SeekIC No. : 004524379 Detail

TMP1940FDBF: Features: • The 16-bit ISA is object-code compatible with the code-efficient MIPS16 ASE.• The 32-bit ISA is object-code compatible with the high-performance TX39 family.• Single cl...

TMP1940FDBF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMP1940FDBF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The 16-bit ISA is object-code compatible with the code-efficient MIPS16 ASE.
• The 32-bit ISA is object-code compatible with the high-performance TX39 family.
• Single clock cycle execution for most instructions
• 3-operand computational instructions for high instruction throughput
• 5-stage pipeline
• On-chip high-speed memory
• DSP function: Executes 32-bit x 32-bit multiplier operations with a 64-bit accumulation in a single clock cycle.
• Optimized design using a low-power cell library
• Programmable standby modes in which processor clocks are stopped
• Distinct starting locations for each interrupt service routine
• Automatically generated vectors for each interrupt source
• Automatic updates of the interrupt mask level
• 16-Mbyte off-chip address space for code and data
• External bus interface with dynamic bus sizing for 8-bit and 16-bit data ports
• Clock for low-power operation: Low-speed clock (32.768 kHz)
• RTC clock: Low-speed clock (32.768 kHz)



Pinout

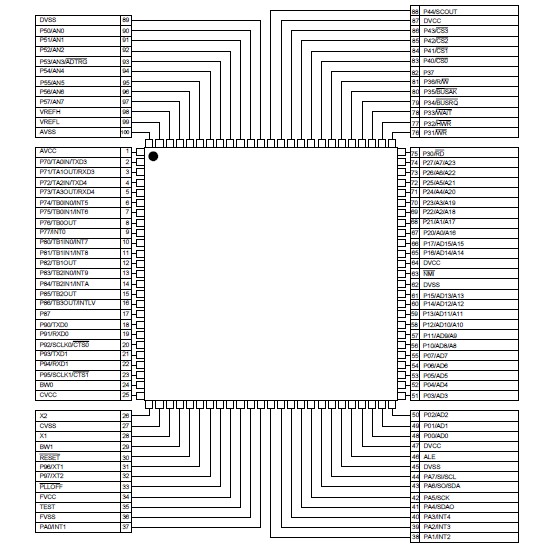

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage VCC −0.5 to 4.0 V
Input voltage VIN −0.5 to VCC + 0.5 V
Low-level output current Per pin IOL 5 mA
Total IOL 80
High-level output current Per pin IOH −5
Total IOH −80
Power dissipation (Ta = 85) PD 600 mW
Soldering temperature (10 s) TSOLDER 260
Storage temperature TSTG −65 to 150
Operating temperature TOPR −40 to 85



Description

This section contains pin assignments for the TMP1940FDBF as well as brief descriptions of the TMP1940CYAF input and output signals.
