Features:

Low Cost 3-Pin Package
Modulated Serial Digital Output
Proportional to Temperature
±1.58C Accuracy (typ) from 258C to +1008C
Specified 408C to +1008C, Operation to 1508C
Power Consumption 6.5 mW Max at 5 V
Flexible Open-Collector Output on TMP03
CMOS/TTL Compatible Output on TMP04
Low Voltage Operation (4.5 V to 7 V)





Application

Isolated Sensors
Environmental Control Systems
Computer Thermal Monitoring
Thermal Protection
Industrial Process Control
Power System Monitors






Pinout

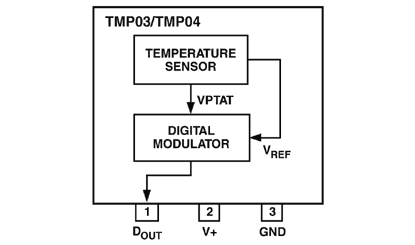

TMP04 Diagram




Specifications

Output Type Digital
Sensor Output PWM
Temp Res(°C/LSB) 0.3°C/LSB
Supply Voltage Range +4.5V to +7V
Temp Range(s) -40 to +100


Maximum Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . +9 V
Maximum Output Current (TMP03 DOUT) . . . . . . . . . . . . . 50 mA
Maximum Output Current (TMP04 DOUT) . . . . . . . . . . . . . 10 mA
Maximum Open-Collector Output Voltage (TMP03) . . . . . +18 V
Operating Temperature Range . . . . .. . . . . 55°C to +150°C
Dice Junction Temperature . . . . . . . . . . . .. . . . . . . . . . +175°C
Storage Temperature Range . . . . . . . . . . . 65°C to +160°C
Lead Temperature (Soldering, 60 sec) . . . . . . .. . . . . . +300°C





Description

The TMP03/TMP04 is a monolithic temperature detector that generates a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a

The TMP03/TMP04 is a monolithic temperature detector that generates a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a voltage precisely proportional to absolute temperature which is compared to an internal voltage reference and input to a precision digital modulator. The ratiometric encoding format of the serial digital output is independent of the clock drift errors common to most serial modulation techniques such as voltageto- frequency converters. Overall accuracy is ±1.5°C (typical) from 25°C to +100°C, with excellent transducer linearity. The digital output of the TMP04 is CMOS/TTL compatible, and is easily interfaced to the serial inputs of most popular microprocessors. The open-collector output of the TMP03 is capable of sinking 5 mA. The TMP03 is best suited for systems requiring isolated circuits utilizing optocouplers or isolation transformers.

The TMP03 and TMP04 are specified for operation at supply voltages from 4.5 V to 7 V. Operating from +5 V, supply current (unloaded) is less than 1.3 mA.

The TMP03/TMP04 are rated for operation over the 40°C to +100°C temperature range in the low cost TO-92, SO-8, and TSSOP-8 surface mount packages. Operation extends to +150°C with reduced accuracy.
