TMC3003

Features: • 10-bit resolution• 80, 50, and 30 megapixels per second• Sync and blank controls• Sync on green D/A output• 1.0V p-p video into 37.5Ω or 75Ω load• Enhancement of ADV7122 Internal bandgap voltage reference Double-buffered data for low d...

product image

TMC3003 Picture
See larger image
SeekIC No. : 004523584 Detail

TMC3003: Features: • 10-bit resolution• 80, 50, and 30 megapixels per second• Sync and blank controls• Sync on green D/A output• 1.0V p-p video into 37.5Ω or 75Ω loa...

TMC3003 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMC3003
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10-bit resolution
• 80, 50, and 30 megapixels per second
• Sync and blank controls
• Sync on green D/A output
• 1.0V p-p video into 37.5Ω or 75Ω load
• Enhancement of ADV7122
    Internal bandgap voltage reference
    Double-buffered data for low distortion
• TTL-compatible inputs
• Low glitch energy
• Single +5 Volt power supply


Application

• Video signal conversion
    RGB
    YCBCR
    Composite, Y, C
• Multimedia systems
• Image processing
• True-color graphics systems (1 billion colors)
• Broadcast television equipment
• High-Definition Television (HDTV) equipment
• Direct digital synthesis


Pinout

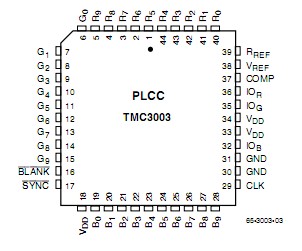

Connection Diagram


Specifications

Parameter
Min
Typ
Max
Unit
Power Supply Voltage
VDD(Measured to GND)
-0.5
7.0
V
Inputs
Applied Voltage (measured to GND)2
-0.5
VDD+0.5
V
Forced Current3,4
-10.0
10.0
mA
Outputs
Applied Voltage (measured to GND)2
-0.5
VDD+0.5
V
Forced Current3,4
-60.0
60.0
mA
short Circuit Duration (single output in HIGH state to ground)
infinite
second
Temperature
Operating, Ambient
-20
110
°C
Junction
150
°C
Lead Soldering (10 seconds)
300
°C
Vapor Phase Soldering (1 minute)
220
°C
Storage
-65
150
°C



Description

The TMC3003 is a high-speed triple 10-bit D/A converter especially suited for video and graphics applications. It offers 10-bit resolution, TTL-compatible nputs, low power consumption, and requires only a single +5 Volt power supply. It has single-ended current outputs, SYNC and BLANK control inputs, and a separate current source for adding sync pulses to the Green D/A converter output. It is ideal for generating analog RGB from digital RGB and driving computer display and video monitors. Three speed grades are available: 30, 50, and 80 Msps.

The TMC3003 triple D/A converter is available in a 44-lead plastic J-leaded PLCC and 48-Lead quad flatpack (LQFP). It is fabricated on a sub-micron CMOS process with perfor-mance guaranteed from 0°C to 70°C.
