TM893CBK32I

Features: Organization TM497BBK32H/ I: 4194304 x 32 TM893CBK32H/ I: 8388608 x 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM497BBK32H/ I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Pa...

product image

TM893CBK32I Picture
See larger image
SeekIC No. : 004523415 Detail

TM893CBK32I: Features: Organization TM497BBK32H/ I: 4194304 x 32 TM893CBK32H/ I: 8388608 x 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM497BBK32H/ I...

TM893CBK32I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TM893CBK32I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Organization
   TM497BBK32H/ I: 4194304 x 32
   TM893CBK32H/ I: 8388608 x 32
 Single 5-V Power Supply (±10% Tolerance)
 72-Pin Single In-Line Memory Module (SIMM) for Use With Socket
 TM497BBK32H/ I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Packages
 TM893CBK32H/ Uses Sixteen 16M-Bit DRAMs in Plastic SOJ Packages
 Long Refresh Period . . . 32 ms (2048 Cycles)
 All Inputs, Outputs, Clocks Fully TTL-Compatible
 3-State Output
 Common CAS Control for Nine Common Data-In and Data-Out Lines in Four Blocks
 Enhanced Page-Mode Operation With CAS-Before-RAS (CBR), RAS-Only, and Hidden Refresh
 Presence Detect
Performance Ranges:
                                   ACCESS    ACCESS     ACCESS    READ
                                      TIME        TIME           TIME        OR
                                       tRAC        tAA             tCAC    WRITE
                                                                        CYCLE
                                       (MAX)     (MAX)         (MAX)      (MIN)
'497BBK32H/I-50          50 ns     25 ns          13 ns     90 ns
'497BBK32H/I-60          60 ns     30 ns          15 ns     110 ns
'497BBK32H/I-70          70 ns     35 ns          18 ns     130 ns
'497CBK32H/I-50          50 ns     25 ns          13 ns     90 ns
'497CBK32H/I-60          60 ns     30 ns          15 ns     110 ns
'497CBK32H/I-70          70 ns     35 ns          18 ns     130 ns
 Low Power Dissipation
 Operating Free-Air Temperature Range 0°C to 70°C
 Gold-Tabbed Version Available:† TM497BBK32H, TM893CBK32H
Tin-Lead (Solder-) Tabbed Version Available: TM497BBK32I, TM893CBK32I


Pinout

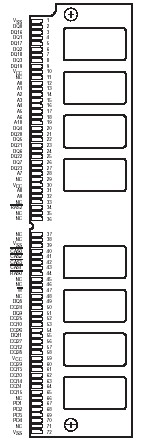

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1 V to 7 V
Voltage range on any pin (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1 V to 7 V
Short-circuit output current  . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 W
Operating free-air temperature range, TA  . . . . . . . . . .  . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . .55°C to 125°C


Description

The TM893CBK32I is a 16M-byte dynamic random-access memory (DRAM) device organized as 4 × 4194304 × 8 bits in a 72-pin leadless single-in-line memory module (SIMM). The SIMM is composed of eight TMS417400ADJ, 4194304 × 4-bit DRAMs, each in 24/26-lead plastic small-outline J-lead (SOJ) packages mounted on a substrate with decoupling capacitors. The TMS417400ADJ is described in the TMS417400A data sheet (literature number SMKS889).

The TM893CBK32I SIMM is available in the single-sided BK leadless module for use with sockets. The TM497BBK32H/ I features RAS access times of 50, 60, and 70 ns. This device is characterized for operation from 0°C to 70°C.

The TM893CBK32I is a 32M-byte DRAM organized as 4  8388608 × 8 bits in a 72-pin leadless SIMM. The SIMM is composed of sixteen TMS417400ADJ, 4194304 × 4-bit DRAMs.

The TM893CBK32I SIMM is available in the double-sided BK leadless module for use with sockets. The TM893CBK32H/ I features RAS access times of 50, 60, and 70 ns. This device is characterized for operation from 0°C to 70°C.
