Product Details

Description



Pinout

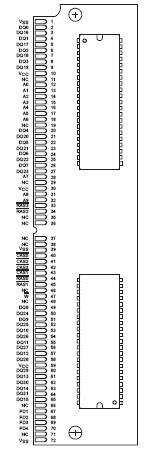

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Short-circuit output current . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . .  50 mA
Power dissipation: TM124BBJ32F, TM124BBJ32U . . . .  . . . . . . . . . . . . . . . . . . . 2 W
TM248CBJ32F, TM248CBJ32U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 W
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . .  . . . 55°C to 125°C


Description

The TM124BBJ32F is a 4-MByte dynamic random-access memory (DRAM) organized as four times 1048576 × 8 in a 72-pin SIMM. The SIMM is composed of two TMS418160DZ, 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418160DZ is described in the TMS418160 data sheet. The TM124BBJ32F SIMM is available in the single-sided BJ-leadless module for use with sockets.

The TM248CBJ32F is an 8-MByte DRAM organized as four times 2 097 152 × 8 in a 72-pin SIMM. The SIMM is composed of four TMS418160DZ, 1048576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418160DZ is described in the TMS418160 data sheet. The TM248CBJ32F SIMM is available in the double-sided BJ-leadless module for use with sockets.
