Features:

 Organization
    TM124MBJ36F . . . 1 048 576 * 36
    TM248NBJ36F . . . 2 097 152 * 36
 Single 5-V Power Supply (±10% Tolerance)
 72-Pin Single In-Line Memory Module (SIMM) for Use With Socket
 TM124MBJ36F Utilizes Two 16-Megabit and One 4-Megabit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Packages
 TM248NBJ36F Utilizes Four 16-Megabit and Two 4-Megabit DRAMs in Plastic SOJ Packages
 Long Refresh Period . . . 16 ms (1024 Cycles)
 All Inputs, Outputs, Clocks Fully TTL-Compatible
 3-State Output
 Common CAS Control for Nine Common Data-In and Data-Out Lines in Four Blocks
 Enhanced Page-Mode Operation With CAS-Before-RAS (CBR), RAS-Only, and Hidden Refresh
 Presence Detect
Performance Ranges:
                               ACCESS ACCESS ACCESS READ
                                 TIME      TIME      TIME     OR
                                 tRAC        tAA       tCAC   WRITE
                                                                        CYCLE
                                 (MAX)     (MAX)     (MAX)   (MIN)
'124MBJ36F-60        60 ns     30 ns     15 ns  110 ns
'124MBJ36F-70        70 ns     35 ns     18 ns  130 ns
'124MBJ36F-80        80 ns     40 ns     20 ns  150 ns
'248NBJ36F-60        60 ns     30 ns     15 ns  110 ns
'248NBJ36F-70        70 ns     35 ns     18 ns  130 ns
'248NBJ36F-80        80 ns     40 ns     20 ns  150 ns
 Low Power Dissipation
 Operating Free-Air Temperature Range 0°C to 70°C
 Gold-Tabbed Versions Available:†
   TM124MBJ36F
   TM248NBJ36F
 Tin-Lead (Solder) Tabbed Versions Available:
   TM124MBJ36U
   TM248NBJ36U


Pinout

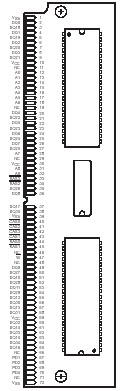

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Short-circuit output current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation TM124MBJ36F, TM124MBJ36U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 W
                             TM248NBJ36F, TM248NBJ36U  . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .6 W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C


Description

TM124MBJ36F
The TM124MBJ36F is a 4-MByte DRAM organized as four times 1048576 × 9 in a 72-pin SIMM. The SIMM is composed of two TMS418160DZ 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package, and one TMS44460DJ 1048576 × 4-bit DRAM in a 24/26-lead plastic SOJ package mounted on a substrate with
decoupling capacitors. The TMS418160DZ and TMS44460DJ are described in the TMS418160 and TMS44460 data sheets, respectively. The TM124MBJ36F SIMM is available in the single-sided BJ leadless module for use with sockets.

TM248NBJ36F
The TM248NBJ36F is an 8-MByte DRAM organized as four times 2097152 × 9 in a 72-pin SIMM. The SIMM is composed of four TMS418160DZ 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package, and two TMS44460DJ 1048576 × 4-bit DRAMs, each in a 24/26-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418160DZ and TMS44460DJ are described in the TMS418160 and TMS44460 data sheets, respectively. The TM248NBJ36F SIMM is available in the double-sided BJ leadless module for use with sockets.
