TM124FBK32H

Features: Organization TM124FBK32H/I . . . 1 048 576 * 32 TM248GBK32H/I . . . 2 097 152 * 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM124FBK32H/ I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lea...

product image

TM124FBK32H Picture
See larger image
SeekIC No. : 004523094 Detail

TM124FBK32H: Features: Organization TM124FBK32H/I . . . 1 048 576 * 32 TM248GBK32H/I . . . 2 097 152 * 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM12...

TM124FBK32H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TM124FBK32H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Organization
   TM124FBK32H/I . . . 1 048 576 * 32
   TM248GBK32H/I . . . 2 097 152 * 32
 Single 5-V Power Supply (±10% Tolerance)
 72-Pin Single In-Line Memory Module (SIMM) for Use With Socket
 TM124FBK32H/ I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Packages
 TM893GBK32H/ Uses Sixteen 16M-Bit DRAMs in Plastic SOJ Packages
 Long Refresh Period . . . 32 ms (2048 Cycles)
 All Inputs, Outputs, Clocks Fully TTL-Compatible
 3-State Output
 Common CAS Control for Nine Common Data-In and Data-Out Lines in Four Blocks
 Enhanced Page-Mode Operation With CAS-Before-RAS (CBR), RAS-Only, and Hidden Refresh
 Presence Detect
 JEDEC First Generation 72-Pin SIMM Pinout
Performance Ranges:
                                   ACCESS    ACCESS     ACCESS    READ
                                      TIME        TIME           TIME        OR
                                       tRAC        tAA             tCAC    WRITE
                                                                        CYCLE
                                       (MAX)     (MAX)         (MAX)      (MIN)
'124FBK32H/I-50          50 ns     25 ns          13 ns     20 ns
'124FBK32H/I-60          60 ns     30 ns          15 ns     25 ns
'124FBK32H/I-70          70 ns     35 ns          18 ns     30 ns
'248GBK32H/I-50          50 ns     25 ns          13 ns     20 ns
'248GBK32H/I-60          60 ns     30 ns          15 ns     25ns
'248GBK32H/I-70          70 ns     35 ns          18 ns     30 ns
 Low Power Dissipation
 Operating Free-Air Temperature Range 0°C to 70°C
 Gold-Tabbed Version Available:† TM124FBK32H TM248GBK32H
 Tin-Lead (Solder-) Tabbed Version Available: TM124FBK32I TM248GBK32I


Pinout

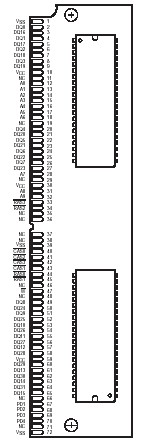

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Short-circuit output current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation TM124FBK32H, TM124FBK32I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 W
                             TM248GBK32H, TM248GBK32I  . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 4W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C


Description

TM124FBK32H/ I
The TM124FBK32H/ I is a 4M-byte DRAM organized as four times 1048576 × 8 in a 72-pin SIMM. The SIMM is composed of two TMS418169ADZ 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418169ADZ is described in the TMS418169A data sheet (literature number SMKS892). The TM124FBK32H/ I SIMM is available in the single-sided BK-leadless module for use with sockets.

TM248GBK32H/ I
The TM248GBK32H/ I is an 8M-byte DRAM organized as four times 2 097 152 × 8 in a 72-pin SIMM. The SIMM is composed of four TMS418169ADZ 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418169ADZ is described in the TMS418169A data sheet (literature number SMKS892). The TM248GBK32H/ I SIMM is available in the double-sided BK-leadless module for use with sockets.
