TM124BBK32I

Features: Organization TM124BBK32H/I . . . 1 048 576 * 32 TM248CBK32H/I . . . 2 097 152 * 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM124BBK32H/I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead...

product image

TM124BBK32I Picture
See larger image
SeekIC No. : 004523089 Detail

TM124BBK32I: Features: Organization TM124BBK32H/I . . . 1 048 576 * 32 TM248CBK32H/I . . . 2 097 152 * 32Single 5-V Power Supply (±10% Tolerance)72-Pin Single In-Line Memory Module (SIMM) for Use With SocketTM12...

TM124BBK32I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TM124BBK32I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Organization
   TM124BBK32H/I . . . 1 048 576 * 32
   TM248CBK32H/I . . . 2 097 152 * 32
 Single 5-V Power Supply (±10% Tolerance)
 72-Pin Single In-Line Memory Module (SIMM) for Use With Socket
 TM124BBK32H/I Uses Eight 16M-Bit Dynamic Random-Access Memories (DRAMs) in Plastic Small-Outline J-Lead (SOJ) Packages
 TM248CBK32H/I Uses Sixteen 16M-Bit DRAMs in Plastic SOJ Packages
 Long Refresh Period . . . 32 ms (2048 Cycles)
 All Inputs, Outputs, Clocks Fully TTL-Compatible
 3-State Output
 Common CAS Control for Nine Common Data-In and Data-Out Lines in Four Blocks
 Enhanced Page-Mode Operation With CAS-Before-RAS (CBR), RAS-Only, and Hidden Refresh
 Presence Detect
Performance Ranges:
                                   ACCESS    ACCESS     ACCESS    READ
                                      TIME        TIME           TIME        OR
                                       tRAC        tAA             tCAC    WRITE
                                                                        CYCLE
                                       (MAX)     (MAX)         (MAX)      (MIN)
'124BBK32H/I-50          50 ns     25 ns          13 ns     90 ns
'124BBK32H/I-60          60 ns     30 ns          15 ns     110 ns
'124BBK32H/I-70          70 ns     35 ns          18 ns     130 ns
'248CBK32H/I-50          50 ns     25 ns          13 ns     90 ns
'248CBK32H/I-60          60 ns     30 ns          15 ns     110ns
'248CBK32H/I-70          70 ns     35 ns          18 ns     130 ns
 Low Power Dissipation
 Operating Free-Air Temperature Range 0°C to 70°C
 Gold-Tabbed Version Available:† TM124BBK32H TM248CBK32H
 Tin-Lead (Solder-) Tabbed Version Available: TM124BBK32I TM248CBK32I


Pinout

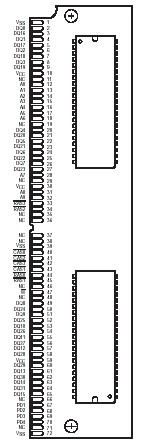

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . 1 V to 7 V
Voltage range on any pin (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 V to 7 V
Short-circuit output current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Power dissipation TM124BBK32H, TM124BBK32I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 W
                             TM248CBK32H, TM248CBK32I  . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 4W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C


Description

TM124BBK32H/ I
The TM124BBK32I is a 32M-bit dynamic random-access memory (DRAM) module organized as four times 1048576 × 8 in a 72-pin SIMM. The SIMM is composed of two TMS418160ADZ, 1 048 576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418160ADZ is described in the TMS418160A data sheet (literature number SMKS891). The TM124BBK32H/ I SIMM is available in the single-sided BK leadless module for use with sockets.

TM248CBK32H/ I
The TM248CBK32H/ I is a 64M-bit DRAM organized as four times 2 097 152 × 8 in a 72-pin SIMM. The SIMM is composed of four TMS418160ADZ, 1048576 × 16-bit DRAMs, each in a 42-lead plastic SOJ package mounted on a substrate with decoupling capacitors. The TMS418160ADZ is described in the TMS418160A data sheet (literature number SMKS891). The TM248CBK32H/ I SIMM is available in the double-sided BK-leadless module for use with sockets.
