TLV5734

Features: *3-Channel CMOS ADC*Single 3.3-V Supply*8-Bit 30-MSPS A/D Conversion*Very Low Power: <300 mW Typical*Differential Linearity Error: < ±0.5 LSB Max*Integral Linearity Error: < ±0.75 LSB Max*Analog Input Voltage Range: 1 Vpp Max*64-Pin Thin QFP Package*Analog Input Bandwidth: >1...

product image

TLV5734 Picture
See larger image
SeekIC No. : 004522540 Detail

TLV5734: Features: *3-Channel CMOS ADC*Single 3.3-V Supply*8-Bit 30-MSPS A/D Conversion*Very Low Power: <300 mW Typical*Differential Linearity Error: < ±0.5 LSB Max*Integral Linearity Error: < ±0.75...

TLV5734 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV5734
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*3-Channel CMOS ADC
*Single 3.3-V Supply
*8-Bit 30-MSPS A/D Conversion
*Very Low Power: <300 mW Typical
*Differential Linearity Error: < ±0.5 LSB Max
*Integral Linearity Error: < ±0.75 LSB Max
*Analog Input Voltage Range: 1 Vpp Max
*64-Pin Thin QFP Package
*Analog Input Bandwidth: >130 MHz
*Selectable Clamping Function for YUV or RGB Applications
*High-Precision Clamp: ±0.5 LSB
*Selectable Output Data Format for 4:4:4(RGB, YUV), 4:2:2 and 4:1:1 (YUV) Format
*NTSC or PAL Compliant






Application

Digital TV
Digital Video
Multimedia
Video Capture
Video Editing
Security Applications


Pinout

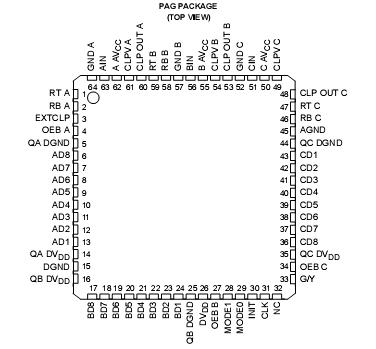

Connection Diagram


Specifications

+ Supply voltage, VCC , VDD§  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 3.6 V
Reference voltage input range: Vref(RT A), Vref(RT B),V ref(RT C), Vref(RB A),
                                                 Vref(RB B),   Vref(RB C)     . . . . . . . . . . . . .. .  0.3 V to VCC +0.3 V
Analog input voltage range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .  0.3 V to VCC +0.3 V
Digital input voltage range, VI. . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0.3 V to 3.6 V
Digital output voltage range, VO   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .  0.3 V to VCC+0.3 V
Operating free-air temperature range, TA. . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .  20 to 75
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to 150





Description

   The TLV5734 is a triple 8-bit converter with high-precision clamp for digitizing video signals in RGB or YUV color spaces. The device supports pixel rates up to 30 MSPS. The TLV5734 is powered from a single 3.3-V supply.Separate clamping levels are provided for the RGB and YUV analog component video inputs. The clamp timing window is provided by an external pulse. The output-data formatter selects from output formats of 4:4:4, 4:1:1,and 4:2:2. For RGB applications, the 4:4:4 output format with clamp can be used. The TLV5734 is characterized for operation from 20°C to 75°C.
