TLV571

Features:

Fast Throughput Rate: 1.25 MSPS at 5 V,
                                         625 KSPS at 3 V
Wide Analog Input: 0 V to AVDD
Differential Nonlinearity Error: < ± 0.5 LSB
Integral Nonlinearity Error: < ± 0.5 LSB
Single 2.7-V to 5.5-V Supply Operation
Low Power: 12 mW at 3 V and 35 mW at 5 V
Auto Power Down of 1 mA Max
Software Power Down: 10 µA Max
Internal OSC
Hardware Configurable
DSP and Microcontroller Compatible
    Parallel Interface
Binary/Twos Complement Output
Hardware Controlled Extended Sampling
Hardware or Software Start of Conversion


Application

Mass Storage and HDD
Automotive
Digital Servos
Process Control
General-Purpose DSP
Image Sensor Processing

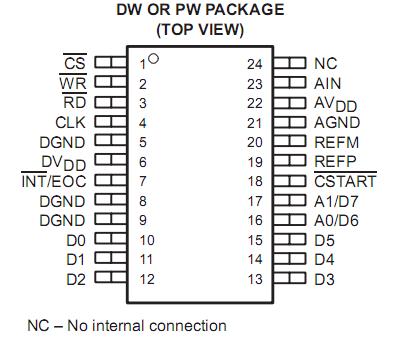

Pinout




Specifications

Supply voltage, GND to VCC    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 6.5 V
Analog input voltage range   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AVDD + 0.3 V
Reference input voltage range   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  AVDD + 0.3 V
Digital input voltage range   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to DVDD + 0.3 V
Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . .  40°C to  150°C
Operating free-air temperature range, TA,  . . . . . . . . . . . . . . . . . . . . . . . . .   40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C  to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds   . . . . . . . . . . . . . . . .  260°C


Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.



Description

The TLV571 is an 8-bit data acquisition system that combines a high-speed 8-bit ADC and a parallel interface. The device contains two on-chip control registers allowing control of software conversion start and power down via the bidirectional parallel port. The control registers can be set to a default mode using a dummy ,RD while ,WR is tied low allowing the registers to be hardware configurable.

The TLV571 operates from a single 2.7-V to 5.5-V power supply. It accepts an analog input range from 0 V to AVDD and digitizes the input at a maximum 1.25 MSPS throughput rate at 5 V. The power dissipations are only 12 mW with a 3-V supply or 35 mW with a 5-V supply. The device features an auto power-down mode that automatically powers down to 1 mA 50 ns after conversion is performed. In software power-down mode, the ADC is further powered down to only 10 µA.

Very high throughput rate, simple parallel interface, and low power consumption make the TLV571 an ideal choice for high-speed digital signal processing.
