TLV5613

Features: ` 12-Bit Voltage Output DAC` Single Supply 2.7-V to 5.5-V Operation` Separate Analog and Digital Supplies` ±0.4 LSB Differential Nonlinearity (DNL),±1.5 LSB Integral Nonlinearity (INL)` Programmable Settling Time vs Power Consumption: 1 s/4.2 mW in Fast Mode,3.5 s/1.2 mW in Slow Mode` 8-...

product image

TLV5613 Picture
See larger image
SeekIC No. : 004522508 Detail

TLV5613: Features: ` 12-Bit Voltage Output DAC` Single Supply 2.7-V to 5.5-V Operation` Separate Analog and Digital Supplies` ±0.4 LSB Differential Nonlinearity (DNL),±1.5 LSB Integral Nonlinearity (INL)` Pr...

TLV5613 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV5613
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 12-Bit Voltage Output DAC
` Single Supply 2.7-V to 5.5-V Operation
` Separate Analog and Digital Supplies
` ±0.4 LSB Differential Nonlinearity (DNL),±1.5 LSB Integral Nonlinearity (INL)
` Programmable Settling Time vs Power Consumption: 1 s/4.2 mW in Fast Mode,3.5 s/1.2 mW in Slow Mode
` 8-Bit mController Compatible Interface (8+4 Bit)
` Power-Down Mode (50 nW)
` Rail-to-Rail Output Buffer
` Synchronous or Asynchronous Update
` Monotonic Over Temperature


Application

· Digital Servo Control Loops
· Battery Powered Test Instruments
· Digital Offset and Gain Adjustment
· Industrial Process Control
· Speech Synthesis
· Machine and Motion Control Devices
· Mass Storage Devices


Pinout

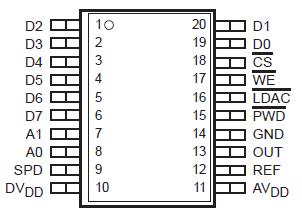

Connection Diagram


Specifications

Supply voltage (DVDD, AVDD to GND) . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Supply voltage difference, AVDD to DVDD . . . . . . .. . . . . . . . . . . . . . . 2.8 V to 2.8 V
Reference input voltage range . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AVDD + 0.3 V
Digital input voltage range to GND . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
Operating free-air temperature range, TA: TLV5613C . .  . . .. . . . . . . . . . . 0 to 70
                                                                   TLV5613I . . . . . . . . . . . . . . 40 to 85
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . 260
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability


Description

The TLV5613 is a 12-bit voltage output digital-to-analog converter (DAC) with a 8-bit microcontroller compatible parallel interface. The 8 LSBs, the 4 MSBs and 3 control bits are written using three different addresses. Developed for a wide range of supply voltages, the TLV5613 can be operated from 2.7 V to 5.5 V.

The resistor string output voltage of TLV5613 is buffered by a x2 gain rail-to-rail output buffer. The buffer features a Class A (slow mode: AB) output stage to improve stability and reduce settling time. The programmable settling time of the DAC allows the designer to optimize speed versus power dissipation. The settling time can be chosen by the control bits within the 16-bit data word.

Implemented with a CMOS process, the TLV5613 is designed for single supply operation from 2.7 V to 5.5 V. It is available in 20 pin SOIC in standard commercial and industrial temperature ranges.
