TLV5592

Features: ` Supports FLEX Protocol Messaging Systems With The TLV559X FLEX Decoder` 3-Pole Butterworth Low-Pass Selectable Dual-Bandwidth Audio Filter BW 1 = 1 kHz ±5% ( 3 dB) BW 2 = 2 kHz ±5% ( 3 dB)` Both Peak and Valley Detectors Available` 2-Bit Analog-to-Digital Converter` Operating Tem...

product image

TLV5592 Picture
See larger image
SeekIC No. : 004522503 Detail

TLV5592: Features: ` Supports FLEX Protocol Messaging Systems With The TLV559X FLEX Decoder` 3-Pole Butterworth Low-Pass Selectable Dual-Bandwidth Audio Filter BW 1 = 1 kHz ±5% ( 3 dB) BW 2 = 2 kHz ±5% ( ...

TLV5592 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV5592
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Supports FLEX Protocol Messaging Systems
  With The TLV559X FLEX Decoder
` 3-Pole Butterworth Low-Pass Selectable
  Dual-Bandwidth Audio Filter
BW 1 = 1 kHz ±5% ( 3 dB)
BW 2 = 2 kHz ±5% ( 3 dB)
` Both Peak and Valley Detectors Available
` 2-Bit Analog-to-Digital Converter
` Operating Temperature Range 20°C to 65°C
` Four Modes of Operation:
Fast Track
Slow Track
Hold
Standby
` 1.8-V to 2.5-V Single Power Supply Operation


Application

·  FLEX Protocol Numeric and
   Alphanumeric Messaging Systems
·  One-Way or Two-Way


Pinout

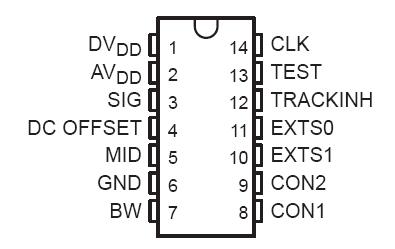

Connection Diagram


Specifications

Supply voltage range, AVDD, DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 6.5 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to AVDD + 0.3 V
Output voltage range, EXTS0, EXTS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
Offset input voltage, VIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to AVDD + 0.3 V
Peak input current (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  20°C to 65°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C


Description

The Texas Instruments (TIE) TLV5592 analog-todigital converter (ADC) is a system level solution to interface a 4-level baseband audio signal to a digital decoder. The TLV5592 is a direct interface to the TLV559X FLEX decoder. Designed primarily for messaging applications, the TLV5592 incorporates signal conditioning, both peak and valley detection along with analog-to-digital conversion. A selectable third-order Butterworth filter with cutoff frequencies of 1 kHz and 2 kHz is included.

The peak and valley detectors are implemented with a unique design that does not require externalcapacitors. Two 8-bit digital-to-analog converters (DACs) are used in a feedback loop to automatically adjust to the peak and valley levels. The DAC outputs are used to set Vref+ and Vref for the 2-bit ADC. Modes of operation include fast track, slow track, hold, and standby. The standby mode maximizes battery life. The TLV5592 operates on a single power supply from 1.8 V to 2.5 V.
