Product Details

Description



Features:

·8-Bit Resolution, 35 MSPS Sampling Analog-to-Digital Converter (ADC)
·Low Power Consumption: 90 mW Typ Using External References
·Wide Analog Input Bandwidth: 600 MHz Typ
·3.3-V Single-Supply Operation
·3.3-V TTL/CMOS-Compatible Digital I/O
·Internal Bottom and Top Reference Voltages
·Adjustable Reference Input Range
·Power-Down (Standby) Mode
·Separate Power Down for Internal Voltage References
·Three-State Outputs
·28-Pin Thin Shrink SOP (TSSOP) Packages



Application

·Digital Communications (IF Sampling)
·High-Speed DSP Front-End (TMS320C6000)
·Medical Imaging
·Video Processing (Scan Rate/Format Conversion)
·DVD Read Channel Digitization

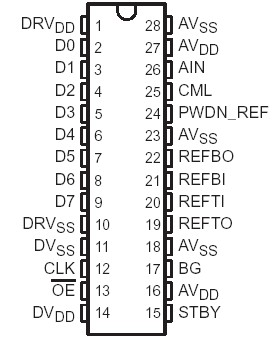

Pinout

  Connection Diagram


Specifications

Supply voltage range: AVDD to AVSS, DVDD to DVSS  . . . . . . . . . . . . . . . . . . . . . .. . . . .0.5 V to 4.5 V
                                    AVDD to DVDD, AVSS to DVSS . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 0.5 V
Digital input voltage range to DVSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to DVDD + 0.5 V
Analog input voltage range to AVSS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to AVDD + 0.5 V
Digital output voltage range applied from external source to DGND  . . . . . . . . 0.5 V to DVDD + 0.5 V
Reference voltage input range to AGND: V(REFTI), V(REFTO), V(REFBI), V(REFBO) 0.5 V to AVDD + 0.5 V
Operating free-air temperature range, TA: TLV5535I  . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55°C to 150°C



Description

The TLV5535 is an 8-bit, 35 MSPS, high-speed A/D converter. It converts the analog input signal into 8-bit binary-coded digital words up to a sampling rate of 35 MHz. All digital inputs and outputs are 3.3 V TTL/CMOS-compatible.

The TLV5535 consumes very little power due to the 3.3-V supply and an innovative single-pipeline architecture implemented in a CMOS process. The user obtains maximum flexibility by setting both bottom and top voltage references from user-supplied voltages. If no external references are available, on-chip references are available for internal and external use. The full-scale range is 1 Vpp up to 1.6 Vpp, depending on the analog supply voltage. If external references of TLV5535 are available, the internal references can be disabled independently from the rest of the chip, resulting in an even greater power saving.

While usable in a wide variety of applications, the TLV5535 is specifically suited for the digitizing of high-speed graphics and for interfacing to LCD panels or LCD/DMD projection modules . Other applications include DVD read channel digitization, medical imaging, and communications. This TLV5535 is suitable for IF sampling of communication systems using sub-Nyquist sampling methods because of its high analog input bandwidth.
