Features:

 Rail-To-Rail Output
 VICR Includes Ground
 Gain-Bandwidth Product . . . 9 MHz
 Supply Current . . . 730 A/Channel
 Single, Duals, and Quad Versions
  Ultralow Power Down Mode IDD(SHDN) = 4 A/Channel
 Specified Temperature Range
  −40°C to 125°C . . . Industrial Grade
 Supply Voltage Range . . . 2.7 V to 5.5 V
 Ultrasmall Packaging 5 or 6 Pin SOT-23 (TLV2630/1) 8 or 10 Pin MSOP (TLV2632/3)
 Universal Op-Amp EVM (See SLOU060 for More Information)


Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless


Pinout

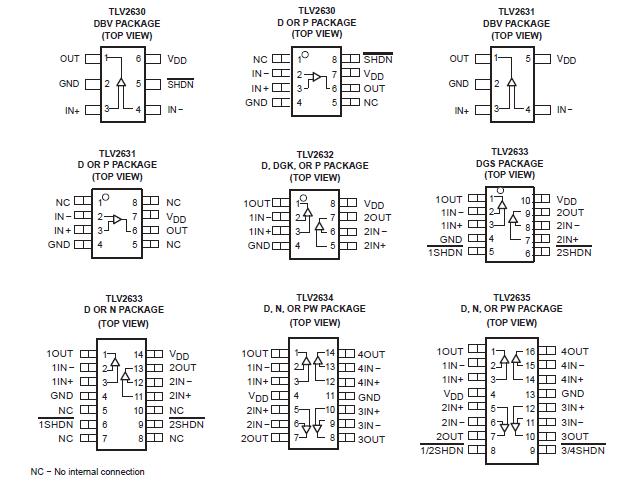

Connection Diagram


Specifications

Supply voltage, VDD (see Note 1) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Differential input voltage, VID .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VDD
Input voltage range, VI (see Note 1) . . . . . .  . . . . . . . . . GND to VDD − 1 V
Input current, II (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 10 mA
Output current, IO . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . ±40 mA
Continuous total power dissipation  . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA: I-suffix  . . . . −40°C to 125°C
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . −65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 2: All voltage values, except differential voltages, are with respect to GND.


Description

The TLV263x single supply operational amplifiers provide rail-to-rail output with an input range that includes ground. The TLV263x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range (−40°C to 125°C) while adding the rail-to-rail output swing feature. The TLV263x also provides a 9 MHz gain-bandwidth product from only 730 A of supply current. The maximum recommended supply voltage is 5.5 V, which, when coupled with a 2.7-V minimum, allows the devices to be operated from lithium ion cells.

The combination of wide bandwidth, low noise, and low distortion makes it ideal for high speed and high resolution data converter applications. The ground input range allows  TLV263x  to directly interface to ground rail referred systems.
