TLV2543IDW

Maximum Power Dissipation :
Architecture : SAR
Interface Type : Serial
Mounting Style : SMD/SMT
Supply Voltage - Max : 3.6 V
Packaging : Tube
Input Type : Voltage
SNR : Yes
Resolution : 12 bit
Maximum Operating Temperature : + 85 C
Number of Converters : 1
Voltage Reference : External
Supply Voltage - Min : 3 V
Number of ADC Inputs : 11
Package / Case : SOIC-20 Wide
Conversion Rate : 66 KSPs


Features:

· 12-Bit-Resolution A/D Converter
· 10-ms Conversion Time Over Operating
  Temperature Range
· 11 Analog Input Channels
· 3 Built-In Self-Test Modes
· Inherent Sample and Hold Function
· Linearity Error . . . ±1 LSB Max
· On-Chip System Clock
· End-of-Conversion (EOC) Output
· Unipolar or Bipolar Output Operation
  (Signed Binary With Respect to Half of the
  Applied Referenced Voltage)
· Programmable MSB or LSB First
· Programmable Power Down
· Programmable Output Data Length
· CMOS Technology

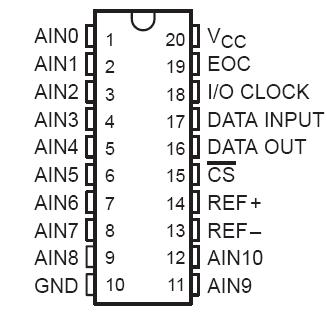

Pinout




Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 6.5 V
Input voltage range, VI (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VCC + 0.3 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to VCC + 0.3 V
Positive reference voltage, Vref+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VCC + 0.1 V
Negative reference voltage, Vref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.1 V
Peak input current, II (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Peak total input current (all inputs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±30 mA
Operating free-air temperature range, TA: TLV2543C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
TLV2543I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to the GND terminal with REF and GND wired together (unless otherwise noted).


Description

The TLV2543C and TLV2543I are 12-bit, switched-capacitor, successive-approximation, analog-to-digital converters (ADCs). Each TLV2543C and TLV2543I  device has three control inputs [chip select (CS), the input-output clock (I/O CLOCK), and the address input (DATA INPUT)] and is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The device allows high-speed data transfers from the host.

In addition to the high-speed converter and versatile control capability, the TLV2543C and TLV2543I  have an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic. At the end of conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The converter incorporated in the device features differential high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating temperature range.The TLV2543 is available in the DW, DB, and N packages. The TLV2543C is characterized for operation from 0°C to 70°C, and the TLV2543I is characterized for operation from 40°C to 85°C.

Parameters:

Technical/Catalog Information	TLV2543IDW
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	12
Package / Case	20-SOIC (7.5mm Width)
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	66k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	11 Single-Ended, Unipolar
Number of Converters	1
Power Dissipation (Max)	3.3mW
Drawing Number	296; 4040000-4; DW; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLV2543IDW TLV2543IDW 296 2979 5 ND 29629795ND 296-2979-5
