TLV2370

Features:

Rail-To-Rail Input/Output
Wide Bandwidth ...3 MHz
High Slew Rate . . . 2.4 V/µs
Supply Voltage Range . . . 2.7 V to 16 V
Supply Current . . . 550 µA/Channel
Low Power Shutdown Mode
I_DD(SHDN) ... 25 µA/Channel
Input Noise Voltage . . . 39 nV/,Hz
Input Bias Current...1 pA
Specified Temperature Range
−40°C to 125°C . . . Industrial Grade
Ultrasmall Packaging
− 5 or 6 Pin SOT-23 (TLV2370/1)
− 8 or 10 Pin MSOP (TLV2372/3)

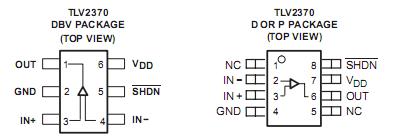

Pinout




Specifications

Supply voltage, V_DD (see Note 1)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .            16.5 V
Differential input voltage, V_ID  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .          ±V_DD
Input voltage range, V_I (see Note 1)   . . . . . . . . . . . . . . . . . . . . . . . −0.2 V to V_DD + 0.2 V
Input current range, I_I  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Output current range, I_O  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   ±100 mA
Continuous total power dissipation   . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, T_A: I suffix   . . . . . . . . . . . . . . . .−40°C to 125°C
Maximum junction temperature, T_J  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    150°C
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds   . . . . . . . . . . . .   260°C


Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: All voltage values, except differential voltages, are with respect to GND.



Description

The TLV237x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 µA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from (±8 V supplies
down to ±1.35 V) a variety of rechargeable cells.

The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLC227x in battery-powered applications. The rail-to-rail input stage further increases its versatility. The TLV237x is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance. All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.

The 2.7-V operation makes the TLV237x compatible with Li-Ion powered systems and the operating supply voltage range of many micro-power microcontrollers available today including TI's MSP430.
