TLV1570

ApplicationMass Storage and Hard Disk DriveAutomotiveDigital ServosProcess ControlGeneral Purpose DSPImage Sensor ProcessingPinoutSpecificationsSupply voltage range, AGND to AVDD, DGND to DVDD . . . . . . . . . . . . . . . 0.3 V to 6.5 VAnalog input voltage range . . . . . . . . . . . . . . . . . ...

product image

TLV1570 Picture
See larger image
SeekIC No. : 004522267 Detail

TLV1570: ApplicationMass Storage and Hard Disk DriveAutomotiveDigital ServosProcess ControlGeneral Purpose DSPImage Sensor ProcessingPinoutSpecificationsSupply voltage range, AGND to AVDD, DGND to DVDD . . ....

TLV1570 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLV1570
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

 Mass Storage and Hard Disk Drive
 Automotive
 Digital Servos
 Process Control
 General Purpose DSP
 Image Sensor Processing


Pinout

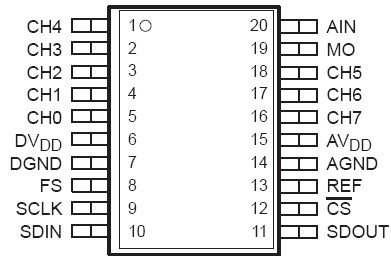

Connection Diagram


Specifications

Supply voltage range, AGND to AVDD, DGND to DVDD . . . . . . . . . . . . . . . 0.3 V to 6.5 V
Analog input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to AVDD+0.3 V
Reference input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . AVDD+0.3 V
Digital input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .0.3 V to DVDD+0.3 V
Operating virtual junction temperature range, TJ . . . . . . . . . . . . . . .. . 40°C to 150°C
Operating free-air temperature range, TA: TLV1570C . . . . . . . . . .  . . . . . . 0°C to 70°C
TLV1570I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . 260°C


Description

The TLV1570 is a 10-bit data acquisition system that combines an 8-channel input multiplexer (MUX), a high-speed 10-bit ADC, an on-chip reference, and a high-speed serial interface. The TLV1570 contains an on-chip control register allowing control of channel selection, conversion start, reference voltage levels, and power down via the serial port. The MUX is independently accessible, which allows the user to insert a signal conditioning circuit such as an anti-aliasing filter or an amplifier, if required, between the MUX and the ADC.Therefore one signal conditioning circuit can be used for all eight channels.
