Product Details

Description



Pinout

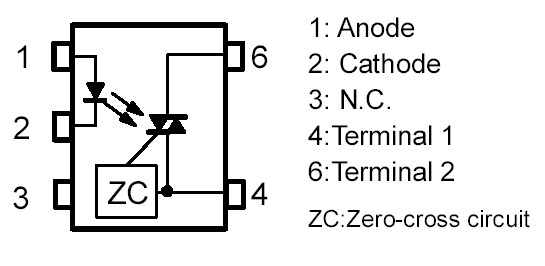

  Connection Diagram


Specifications

• Peak off-state voltage: 600V (Min.)
• Trigger LED current: 3mA (Max.)
• On-state current: 100mA (Max.)
• Isolation voltage: 5000Vrms (Min.)
• UL recognized: UL1577, file No. E67349
• BSI approved: BS EN60065:2002, file No. 8385
                          BS EN60950-1:2002, file No. 8386
• SEMCO approved:EN60065,EN60950-1,EN60335-1
                               Certificate no.708960
• Option(D4) type
   VDE approved: DIN EN 60747-5-2
             Certificate No. 40009302
    Maximum operating insulation voltage : 1140VPk
    Highest permissible over voltage : 8000 VPk

(Note) When an EN60747-5-2 approved type is needed, please designate the "Option(D4)".
• Construction mechanical rating (10.16mm pitch)
   Creepage distance: 8.0mm (Min.)
   Clearance: 8.0mm (Min.)
   Insulation thickness: 0.5mm (Min.)
