TLP598G

Circuit: SPST-NO (1 Form A)
Output Type: AC, DC
Relay Type: Relay
Packaging: Tube
Mounting Type: Through Hole
Termination Style: PC Pin
Package / Case: 6-DIP (0.300", 7.62mm)
Supplier Device Package: 6-DIP
Load Current: 150mA
Voltage - Load: 0 ~ 400 V
On-State Resistance: 12 Ohm
Voltage - Input: 1.4VDC
Manufacturer: Toshiba
Series: TLP598G

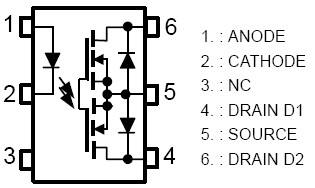

Pinout




Specifications

Characteristic		Symbol	Rating	Unit
LED	Forward current	IF	50	mA
	Forward current derating	IF / °C	-0.7	mA / °C
	Reverse voltage	IFP	1	A
	Peak forward current(100s pulse,100pps)	IFP	1	A
	Junction temperature	Tj	125	°C
Detector	Collector-emitter voltage	VCEO	80	V
	Collector base voltage	VCEO	80	V
	Emitter-collector voltage	VCEO	7	V
	Emitter-base voltage	VCEO	7	V
	Collector current	IC	50	mA
	Peak collector current(10ms pulse,100pps)	ICP	100	mA
	Power dissipation	PC	150	mW / °C
	Power dissipation derating (Ta 25°C)	PC / °C	-1.5	°C
	Junction temperature	Tj	125	°C
Storage temperature range		Tstg	-55~125	°C
Operating temperature range		Topr	-55~100	°C
Lead soldering temperature(10 sec.)		Tsold	260	°C
Total package power dissipation		PT	200	mW
Total package power dissipation derating (Ta25°C)		PT / °C	-2.0	mW / °C
Isolation voltage (AC, 1min., RH 60%) (Note 1)		BVS	3750	Vrms































(Note 2): Device considered a twoterminal device: Pins 1, 2 and 3 shorted together, and pins 4, 5 and 6
shorted together.
