TLP4222G-2

Features: Normally closed devicePeak off-state voltage: 350 V (min)Trigger LED current: 3 mA (max)On-state current: 100 mA (max)On-state resistance: 50 (max) Isolation voltage: 2500 Vrms (min)PinoutSpecifications Characteristic Symbol Rating Unit LED Forward current IF ...

product image

TLP4222G-2 Picture
See larger image
SeekIC No. : 004521752 Detail

TLP4222G-2: Features: Normally closed devicePeak off-state voltage: 350 V (min)Trigger LED current: 3 mA (max)On-state current: 100 mA (max)On-state resistance: 50 (max) Isolation voltage: 2500 Vrms (min)Pinou...

TLP4222G-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP4222G-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Normally closed device
 Peak off-state voltage: 350 V (min)
 Trigger LED current: 3 mA (max)
 On-state current: 100 mA (max)
 On-state resistance: 50 (max)
Isolation voltage: 2500 Vrms (min)

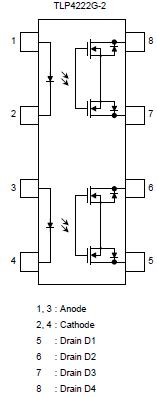

Pinout

Connection Diagram




Specifications

Characteristic
Symbol
Rating
Unit
LED
 Forward current
IF
50
mA
Forward current derating (Ta 25°C)
IF / °C
-0.5
mA / °C
Peak forward current (100s pulse, 100 pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
 Off-state output terminal voltage
VOFF
350
V
On-state current TLP4222G
ION
100
mA
TLP4222G-2 One channel operation
Two channel operations
On-state current derating (Ta 25°C) TLP4222G
ION/°C
-1.0
mA / °C
TLP4222G-2 One channel operation
Two channel operations
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
-55 to 125
°C
Operating temperature range
Topr
-40 to 85
°C
Lead soldering temperature (10s)
Tsol
260
°C
Isolation voltage(AC, 1 min., R.H. 60%) (Note1)
BVS
2500
Vrms


Note 1: For TLP4222G, Pins 1 and 2 are shorted together, and pins 3 and 4 are shorted together.
             For TLP4222G-2, Pins 1, 2, 3 and 4 are shorted together, and pins 5, 6, 7 and 8 are shorted together.




Description

The Toshiba TLP4222G-2 consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET and is the normally closed photorelay with 350-V withstanding voltage.
