Product Details

Description



Features:

 Peak off−state voltage: 400V(min.)
Trigger LED current: 10mA(max.)
On−state current: 1.0Arms(max per 1ch) 1.4Arms(max per 2ch)
Isolation voltage: 2500Vrms (min.)

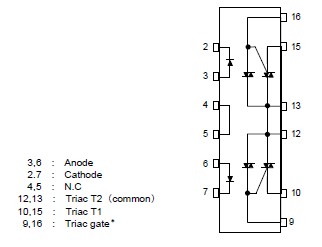

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
LED
Forward current
IF
50
mA
Forward current derating (Ta 53°C)
IF /°C
-0.7
mA /°C
Peak forward current (100 s pulse, 100 pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
Off-state output terminal voltage
VDRM
600
V
On-state RMS current
Ta=40°C
IT(RMS)
1.0(per 1 ch)
A
1.4(per 2 ch)
Ta=60°C
0.7(per 1 ch)
1.0(per 2ch)
On-state current derating (Ta 40°C)
IT / °C
-14.3(per 1ch)
mA / °C
-20.0(per 2 ch)
Peak on-state current (100s pluse, 120pps)
ITP
2
A
Peak nonrepetitive surge current(50Hz,peak)
ITSM
10
A
Junction temperature
Tj
110
°C
Storage temperature range
Tstg
-40~125
°C
Operating temperature range
Topr
-20~80
°C
Lead soldering temperature (10s)
Tsol
260
°C
Isolation voltage (AC, 1 min., R.H. 60%) (Note)
BVS
2500
Vrms


(Note): Device considered a two terminal: LED side pins shorted together and detector side pins shorted together.




Description

The TOSHIBA TLP3530 consists of a photo−triac optically coupled to a gallium arsenide infrared emitting diode in a 16 lead plastic DIP package for 2 channels output..
