TLP321-4

Features: Collector−emitter voltage: 80V (min.) Current transfer ratio: 50% (min.) Rank GB: 100% (min.) Isolation voltage: 5000Vrms (min.) UL recognized: UL1577, file no. E67349PinoutSpecifications Characteristic Symbol Rating Unit TLP321-1 TLP321-2TLP321-4 LED ...

product image

TLP321-4 Picture
See larger image
SeekIC No. : 004521708 Detail

TLP321-4: Features: Collector−emitter voltage: 80V (min.) Current transfer ratio: 50% (min.) Rank GB: 100% (min.) Isolation voltage: 5000Vrms (min.) UL recognized: UL1577, file no. E67349PinoutSpecifica...

TLP321-4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP321-4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Collector−emitter voltage: 80V (min.)
Current transfer ratio: 50% (min.) Rank GB: 100% (min.)
Isolation voltage: 5000Vrms (min.)
UL recognized: UL1577, file no. E67349




Pinout

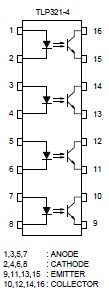

Connection Diagram




Specifications

Characteristic
Symbol
Rating
Unit
TLP321-1
TLP321-2
TLP321-4
LED
 Forward current
IF
60
50
mA
Forward current derating
IF /°C
-0.7 (Ta 39°C)
-0.5 (Ta 25°C)
mA / °C
Pulse forward current
IFP
±1 (100s pulse, 100pps)
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
 Collector-emitter voltage
VCEO
80
V
Emitter-collector voltage
VECO
7
V
Collector current
IC
50
mA
Collector power dissipation
(1 circuit)
PC
150
100
mW
Collector power dissipation
derating (1 circuit, Ta 25°C)
PC / °C
-1.5
-1.0
mW / °C
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
-55~125
°C
Operating temperature range
Topr
-55~100
°C
Lead soldering temperature
Tsol
260 (10s)
°C
Total package power dissipation
PT
250
150
°C
Total package power dissipation
derating (Ta25°C)
PT / °C
-2.5
-1.5
mW / °C
Isolation voltage (Note 1)
BVS
5000 (AC, 1min., R.H. 60%)
Vrms


(Note 1) Device considered a two terminal device: LED side pins shorted together and detector side pins shorted together.




Description

The TOSHIBA TLP321, −2 and TLP321-4 consist of a photo−transistor optically coupled to a gallium arsenide infrared emitting diode.

The TLP321-2 offers two isolated channels in an eight lead plastic DIP package, while the TLP321-4 provides four isolated channels in a sixteen plastic DIP package.

TLP321 / −2 / TLP321-4 have high VCEO voltage (VCEO = 80V).
