TLP296G

Features: 8 pin DIP (DIP8), 2 channel type (2−form−A) Peak off−state voltage: 400 V (min.) Trigger LED current: 5 mA (max.) On−state current: 100 mA (max.) On−state resistance: 30 (max.) Isolation voltage: 2500 Vrms (min.) Trigger LED current (Ta = 25°C) Cla...

product image

TLP296G Picture
See larger image
SeekIC No. : 004521661 Detail

TLP296G: Features: 8 pin DIP (DIP8), 2 channel type (2−form−A) Peak off−state voltage: 400 V (min.) Trigger LED current: 5 mA (max.) On−state current: 100 mA (max.) On−state res...

TLP296G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP296G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 8 pin DIP (DIP8), 2 channel type (2−form−A)
Peak off−state voltage: 400 V (min.)
Trigger LED current: 5 mA (max.)
On−state current: 100 mA (max.)
On−state resistance: 30 (max.)
Isolation voltage: 2500 Vrms (min.)
Trigger LED current (Ta = 25°C)

Classification*
Trigger LED Current (mA)
Marking Of
Classification
@ION = 100 mA
Min.
Max.
(IFT2)
2
 T2
Standard
5
 T2, blank


(*): Ex. Rank IFT2: TLP296G (IFT2)

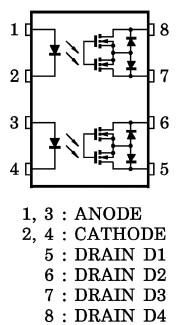

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
LED Forward current
IF
50
mA
Forward current derating (Ta 25°C)
IF / °C
-0.5
mA / °C
Peak forward current (100 s pulse, 100 pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector Off-state output terminal
voltage
VOFF
400
V
On-state RMS
current		 Both channel Note 1
ION
100
mA
One channel
120
Onstate current derating
(Ta25°C)		 Both channel Note 1
ION / °C
-1.0
mA / °C
One channel
-1.2
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
-55~125
°C
Operating temperature range
Topr
-20~85
°C
Lead soldering temperature (10 s)
Tsol
260
°C
Isolation voltage (AC, 1 min., R.H. 60%)          Note 2
BVS
2500
Vrms


(Note 1): Two channels operationg simultaneously.
(Note 2): Device considered a twoterminal device: Pins 1, 2, 3and 4 shorted together and pins 5, 6,7and 8 shorted together.




Description

The TOSHIBA TLP296G consists of gallium arsenide infrared emitting diode optically coupled to a photo−MOS FET in a 8 lead DIP package(DIP8).

The TLP296G is a bi−directional switch which can replace mechanical relay in many applications.
