TLP270D

Features: (1) Photorelay Dial pulsing switch, hookswitch 1 form A Peak off−state voltage: 200V (min.) Trigger LED current: 3mA (max.) On−state current: 150mA (max.)(2) Photocoupler Ring detection Collector−emitter voltage: 80V (min.) Current transfer ratio: 50% (min.)(3) Darlingt...

product image

TLP270D Picture
See larger image
SeekIC No. : 004521652 Detail

TLP270D: Features: (1) Photorelay Dial pulsing switch, hookswitch 1 form A Peak off−state voltage: 200V (min.) Trigger LED current: 3mA (max.) On−state current: 150mA (max.)(2) Photocoupler Ring ...

TLP270D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP270D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

(1) Photorelay
   Dial pulsing switch, hookswitch
1 form A
Peak off−state voltage: 200V (min.)
Trigger LED current: 3mA (max.)
On−state current: 150mA (max.)
(2) Photocoupler
   Ring detection
Collector−emitter voltage: 80V (min.)
Current transfer ratio: 50% (min.)
(3) Darlington transistor
   Electronic inductor
Collectoremitter voltage: 30V (min.)
Collector current: 150mA (max.)
(4) Bridge rectifier
   Polarity protection
Reverse voltage: 30V (min.)
Forward voltage: 1.7V (max.)
(5) Zener diode
   Ring detection protector
Zener voltage: 22~32V
   (Common)
Isolation voltage: 1500Vrms (min.)
 UL recognized: UL1577, file No. E67349

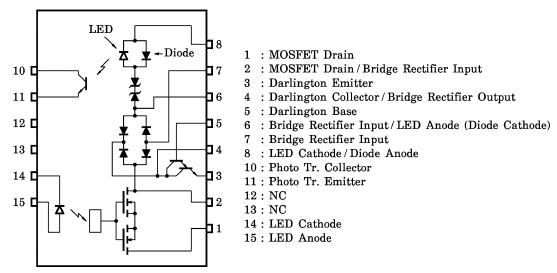

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
LED
 Forward current
IF
50
mA
Forward current derating
(Ta 25°C)
IF / °C
-0.5
mA / °C
Peak forward current
(100s pulse, 100pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
 Off-state output terminal
voltage
VOFF
200
V
On-state RMS current
ION
150
mA
On-state RMS current
derating(Ta 25°C)
ION / °C
-1.5
mA / °C
Junction temperature
Tj
125
°C



Description

TLP270D has many multi−functions in DAA circuits for modems,which is a fully integrated design photocoupler in a 14pin(SOP16).
