TLP260J

Series: -
Number of Channels: 1
Voltage - Off State: 600V
Current - Gate Trigger (Igt) (Max): 10mA
Packaging: Tube
Output Type: AC, Triac, Standard
Mounting Type: Surface Mount
Manufacturer: Toshiba
Current - DC Forward (If): 20mA
Current - Output / Channel: 70mA
Voltage - Isolation: 3000Vrms
Current - Hold (Ih): 1mA
Package / Case: 4-SMD, Gull Wing
Supplier Device Package: 4-SOP (2.54mm)


Features:

 Peak OFF-state voltage: 600 V (min)
Trigger LED current: 10 mA (max)
ON-state current: 70 mA (max)
Isolation voltage: 3000 Vrms (min)

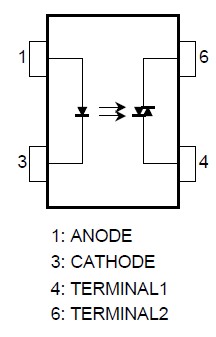

Pinout




Specifications

Characteristic			Symbol	Rating	Unit
LED	Forward current		IF	50	mA
	Forward current derating (Ta 53°C)		IF /°C	-0.7	mA /°C
	Peak forward current (100 s pulse, 100 pps)		IFP	1	A
	Reverse voltage		VR	5	V
	Junction temperature		Tj	125	°C
Detector	Off-state output terminal voltage		VDRM	600	V
	On-state RMS current	Ta=25°C	IT(RMS)	70	mA
		Ta=70°C		40
	On-state current derating (Ta 40°C)		IT / °C	-0.67	mA / °C
	Peak on-state current (100s pluse, 120pps)		ITP	2	A
	Peak nonrepetitive surge current(50Hz,peak)		ITSM	1.2	A
	Junction temperature		Tj	100	°C
Storage temperature range			Tstg	-40~125	°C
Operating temperature range			Topr	-20~80	°C
Lead soldering temperature (10s)			Tsol	260	°C
Isolation voltage (AC, 1 min, RH 60%) (Note1)			BVS	3000	Vrms

(Note) Device considered a two terminal: LED side pins shorted together and detector side pins shorted together.

Description

The TOSHIBA TLP260J is a photocoupler housed in a mini-flat package and consists of a phototriac which is optically coupled to a gallium arsenide infrared-emitting diode.

This type of TLP260J is suitable for use in hybrid ICs as it is thinner and smaller than a 6-pin DIP photocoupler.

TLP260J: 4-pin mini-flat package (MFSOP6)
