TLP227G-2

Features: ·TLP227G : 4 pin DIP (DIP4), 1 Channel Type (1 Form A)·TLP227G-2 : 8 pin DIP (DIP8), 2 Channel Type (2 Form A)·Peak Off-State Voltage : 350 V (MIN.)·Trigger LED Current : 3 mA (MAX.)·On-State Current : 120 mA (MAX.)·On-State Resistance : 25 Ω (MAX.)·Isolation Voltage : 2500 Vrms (M...

product image

TLP227G-2 Picture
See larger image
SeekIC No. : 004521641 Detail

TLP227G-2: Features: ·TLP227G : 4 pin DIP (DIP4), 1 Channel Type (1 Form A)·TLP227G-2 : 8 pin DIP (DIP8), 2 Channel Type (2 Form A)·Peak Off-State Voltage : 350 V (MIN.)·Trigger LED Current : 3 mA (MAX.)·On-St...

TLP227G-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP227G-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·TLP227G : 4 pin DIP (DIP4), 1 Channel Type (1 Form A)
·TLP227G-2 : 8 pin DIP (DIP8), 2 Channel Type (2 Form A)
·Peak Off-State Voltage : 350 V (MIN.)
·Trigger LED Current : 3 mA (MAX.)
·On-State Current : 120 mA (MAX.)
·On-State Resistance : 25 Ω (MAX.)
·Isolation Voltage : 2500 Vrms (MIN.)


Pinout

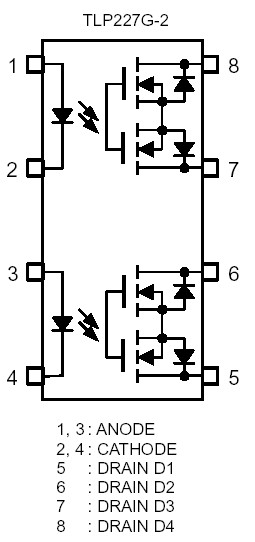

Connection Diagram




Specifications

CHARACTERISTIC SYMBOL RATING UNIT
LED Forward Current IF 50 mA
Forward Current Derating (Ta 25) IF/ -0.5 mA/
Peak Forward Current (100s pulse, 100 pps) IFP 1 A
Reverse Voltage VR 5 V
Junction Temperature Tj 125
DETECTOR Off-State Output Terminal Voltage VOFF 350 V
On-State Current TLP227G ION 120 mA
TLP227G-2 One Channel
Both Channel (Note 1)
On-State Current Derating (Ta 25) TLP227G ION/°C -1.2 mA/
TLP227G-2 One Channel
Both Channel (Note 1)
Junction Temperature Tj 125
Storage Temperature Range Tstg -55~125
Operating Temperature Range Topr -40~85
Lead Soldering Temperature (10 s) Tsol 260
Isolation Voltage (AC, 1 minute, R.H. 60%) (Note 2) BVS 2500 Vrms



Description

The TOSHIBA TLP227G-2 series consist of a gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET in a plastic DIP package.

The TLP227G-2 series are a bi-directional switch, which can replace mechanical relays in many applications.
