TLP227A-2

Features: TLP227A : 4 pin DIP (DIP4) 1 Channel Type (1 Form A)TLP227A-2 : 8 pin DIP (DIP8) 2 Channel Type (2 Form A) Peak Off-State Voltage : 60 V (MIN.) Trigger LED Current : 3 mA (MAX.) On-State Current : 500 mA (MAX.) On-State Resistance : 2 (MAX.) Isolation Voltage : 2500 Vrms (MIN.) UL Recog...

product image

TLP227A-2 Picture
See larger image
SeekIC No. : 004521638 Detail

TLP227A-2: Features: TLP227A : 4 pin DIP (DIP4) 1 Channel Type (1 Form A)TLP227A-2 : 8 pin DIP (DIP8) 2 Channel Type (2 Form A) Peak Off-State Voltage : 60 V (MIN.) Trigger LED Current : 3 mA (MAX.) On-State C...

TLP227A-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP227A-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 TLP227A : 4 pin DIP (DIP4)
                    1 Channel Type (1 Form A)
 TLP227A-2 : 8 pin DIP (DIP8)
                       2 Channel Type (2 Form A)
  Peak Off-State Voltage : 60 V (MIN.)
  Trigger LED Current : 3 mA (MAX.)
  On-State Current : 500 mA (MAX.)
  On-State Resistance : 2 (MAX.)
  Isolation Voltage : 2500 Vrms (MIN.)
  UL Recognized : UL1577, File No. E67349




Pinout

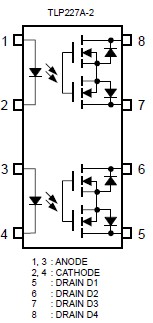

Connection Diagram




Specifications

Characteristics
Symbol
Rating
Unit
LED
 Forward current
IF
50
mA
Forward current derating (Ta 25°C)
IF/°C
-0.5
mA/°C
Peak Forward Current (100s pulse, 100 pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
 Off-state output terminal voltage
VOFF
60
V
On-state current TLP227A
ION
500
mA
TLP227A-2 One Channel
Both Channel (Note 1)
On-State Current Derating (Ta 25°C) TLP227A
ION/°C
-5.0
mA/°C
TLP227A-2 One Channel
Both Channel (Note 1)
Junction temperature
Tj
125
°C
Storage temperature
Tstg
-55~125
°C
Operating temperature
Topr
-40~85
°C
Lead soldering temperature (10 s)
Tsol
260
°C
Isolation Voltage (AC, 1 minute, R.H.60%) (Note 2)
BVS
2500
Vrms


(Note 1) :Two channels operating simultaneously.
(Note 2):Device considered a two-terminal device : LED side pins shorted together, and DETECTOR side pins shorted together.




Description

The TOSHIBA TLP227A-2 series consist of a gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET in a plastic DIP package.

The TLP227A-2 series are a bi-directional switch, which can replace mechanical relays in many applications.
