TLP206G

Features: SOP 8 pin (2.54SOP8): 2−Form−A Peak off−state voltage: 350V(min) Trigger LED current: 3mA(max) On−state current: 120mA(max) On−state resistance: 35(max) Isolation voltage: 1500Vrms(min) UL recognized: UL1577, file no.E67349 BSI approved: BS EN60065: 1994,ce...

product image

TLP206G Picture
See larger image
SeekIC No. : 004521628 Detail

TLP206G: Features: SOP 8 pin (2.54SOP8): 2−Form−A Peak off−state voltage: 350V(min) Trigger LED current: 3mA(max) On−state current: 120mA(max) On−state resistance: 35(max) Isol...

TLP206G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLP206G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

SOP 8 pin (2.54SOP8): 2−Form−A
Peak off−state voltage: 350V(min)
Trigger LED current: 3mA(max)
On−state current: 120mA(max)
On−state resistance: 35(max)
Isolation voltage: 1500Vrms(min)
UL recognized: UL1577, file no.E67349
BSI approved: BS EN60065: 1994,certificate no.8273
     BS EN60950: 1992,certificate no.8274
SEMKO approved: SS EN60065
                                SS EN60950
 Option(V4)type
     TUV approved: DIN VDE0884 / 06.92,certificate No. R9850580




Pinout

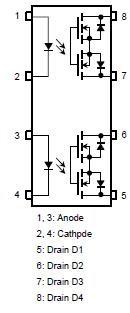

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
LED
 Forward current
IF
20
mA
Forward current derating
(Ta 25°C)
IF / °C
-0.2
mA / °C
Peak forward current
(100s pulse, 100 pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
°C
Detector
 Off-state output terminal voltage
VOFF
350
V
On-state current Both channel (Note 1)
ION
100
mA
One channel
120
On-state RMS current
derating(Ta 25°C)		 Both channel (Note 1)
IT / °C
-1.0
mA / °C
One channel
-1.2
Junction temperature
Tj
125
°C
Storage temperature range
Tstg
-55~125
°C
Operating temperature range
Topr
-40~85
°C
Lead soldering temperature (10 s)
Tsol
260
°C
Isolation voltage (AC, 1 min., R.H. 60%) (Note 2)
BVS
1500
Vrms


(Note 1): Two channels operating simultaneously.
(Note 2): Device considered a two-terminal device: Pins1,2,3 and 4 shorted together and pins 5,6,7 and 8 shorted together.




Description

The TOSHIBA TLP206G consists of gallium arsenide infrared emitting diode optically coupled to a photo−MOS FET in a 8 pin SOP.

The TLP206G is a 2−Form−A switch which is suitable for replacement of mechanical relays in many application.
