TLE7209-2R

Motor / Motion / Ignition Controllers & Drivers 7A H-Bridge 150mA DC-MOTORAPPS

product image

TLE7209-2R Picture
See larger image
SeekIC No. : 00534204 Detail

TLE7209-2R: Motor / Motion / Ignition Controllers & Drivers 7A H-Bridge 150mA DC-MOTORAPPS

TLE7209-2R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE7209-2R
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Half Bridge DC Motor Driver Operating Supply Voltage : 5 V to 28 V
Supply Current : 30 mA Mounting Style : SMD/SMT
Package / Case : DSO Packaging : Reel

Description

Product :
Mounting Style : SMD/SMT
Packaging : Reel
Type : Half Bridge DC Motor Driver
Supply Current : 30 mA
Package / Case : DSO
Operating Supply Voltage : 5 V to 28 V


Features:

• Operating supply voltage 5 V to 28 V
• Typical RDSon = 150mΩ for each output transistor (at 25 °C)
• Continuous DC load current 3.5 A (TC < 100 °C)
• Output current limitation at typ. 6.6 A ± 1.1 A
• Short circuit shut-down for output currents over 8 A
• Logic- inputs TTL/CMOS-compatible
• Output switching frequency up to 30 kHz
• Rise and fall times optimized for 0.5-2 kHz
• Over-temperature protection
• Short circuit protection
• Undervoltage disable function
• Diagnostic by SPI or Status-Flag (configurable)
• Enable and Disable input
• P-DSO-20-12 power package

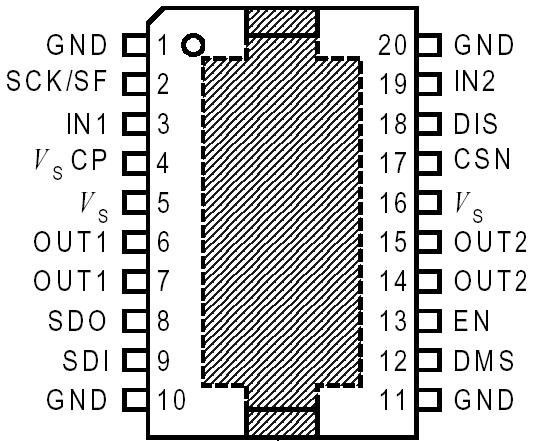

Pinout

Connection Diagram


Specifications

Pos. Parameter Symbol Limit Values Unit Test Conditions
min. max.
3.1.1 Junction temperature Tj -40 +150 °C
+175 °C dynamic: t < 1 s
3.1.2 Storage temperature Ts -55 +125 °C
3.1.3 Ambient temperature Ta -40 +125 °C
3.1.4 Supply voltage VS -1 40 V static destruction proof
-2 40 V dynamic destruction proof
t < 0.5 s
(single pulse, Tj < 85 °C)
3.1.5 Voltage at logic
inputs
IN1, IN2, DIS, EN,
SDI, SCK/SF		 V -0.5 18 V In status-flag-mode, SF
pull-up R 10 kΩ
3.1.6 Voltage at logic input
CSN		 V -0.5 40 V
3.1.7 Voltage at logic input
DMS and logic output
SDO		 V -0.5 13 V
3.1.8 Voltage at VsCP VCP VS -
0.5		 VS +
0.5		 V -
3.1.9 ESD voltage human
body model (MIL
STD 883D / ANSI
EOS\ESD S5.1)		 VESD 4kV all pins
3.1.10 VESD--
OUT		 8kV only pins 6, 7, 14 and 15
(outputs)



Description

The TLE7209-2R is an intelligent full H-Bridge, designed for the control of DC and stepper motors in safety critical applications and under extreme environmental conditions.

The H-Bridge TLE7209-2R is protected against over-temperature and short circuits and has an under voltage lockout for all the supply voltages "VS" (main DC power supply). All malfunctions cause the output stages to go tristate.

The TLE7209-2R is configurable by the DMS pin. When grounded, the device gives diagnostic information via a simple error flag. When supplied with VCC = 5 V, the device works in SPI mode. In this mode, detailed failure diagnosis is available via the serial interface.




Parameters:

Technical/Catalog InformationTLE7209-2R
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
ApplicationsDC Motor Controller, Stepper Motor Controller
Number of Outputs1
Voltage - Supply5 V ~ 28 V
Voltage - Load-
Current - Output5A
Operating Temperature-40°C ~ 125°C
Package / CaseDSO-20
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TLE7209 2R
TLE72092R
