Product Details

Description



Features:

Features
• Advanced performance
• High sensitivity
• Symmetrical thresholds
• High piezo resistivity
• Reduced power consumption
• South and north pole pre-induction possible

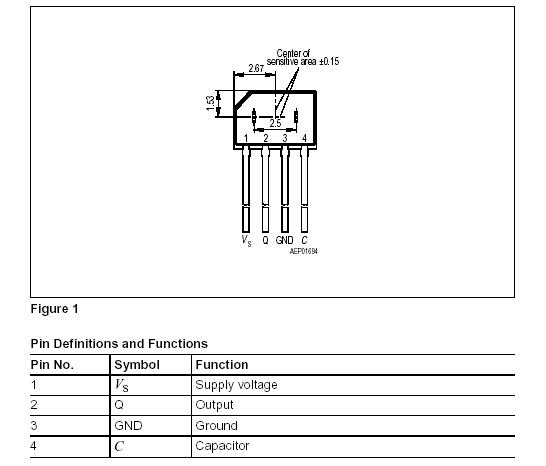

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage VS 351) 30 V
Output voltage VQ 0.7 30 V
Output current IQ 50 mA
Output reverse current IQ 50 mA
Capacitor voltage VC 0.3 3 V
Junction temperature
Junction temperature
Junction temperature
Junction temperature

 T j
T j
T j
T j


150
160
170
210		 °C
°C
°C
°C		 5000 h
2500 h
1000 h
40 h
Storage temperature TS 40 150 °C
Thermal resistance
P-SSO-4-1		 R th JA 190 K/W
Current through inputprotection
device
Current through outputprotection
device		 ISZ
IQZ
200
200		 mA
mA		 t < 2 ms; v = 0.1
t < 2 ms; v = 0.1



Description

Functional Description TLE4921-3U
  The Differential Hall Sensor IC detects the motion and position of ferromagnetic and permanent magnet structures by measuring the differential flux density of the magnetic field. To detect ferromagnetic objects the magnetic field must be provided by a back biasing permanent magnet (south or north pole of the magnet attached to the rear unmarked side of the IC package).
