TLE4921-2

Features: · AC coupled· Digital output signal· Two-wire and three-wire configuration possible· Large temperature range· Large distance, low frequency cut-off· Protection against overvoltage· Protection against reversed polarity· Output protection against electrical disturbancesApplicationTwo possi...

product image

TLE4921-2 Picture
See larger image
SeekIC No. : 004521019 Detail

TLE4921-2: Features: · AC coupled· Digital output signal· Two-wire and three-wire configuration possible· Large temperature range· Large distance, low frequency cut-off· Protection against overvoltage· Protect...

TLE4921-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE4921-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· AC coupled
· Digital output signal
· Two-wire and three-wire configuration possible
· Large temperature range
· Large distance, low frequency cut-off
· Protection against overvoltage
· Protection against reversed polarity
· Output protection against electrical disturbances


Application

Two possible applications are shown in figure 7 and 8 (Toothed and Magnet Wheel). The differences between two-wire and three-wire application is shown in figure 9.


Pinout

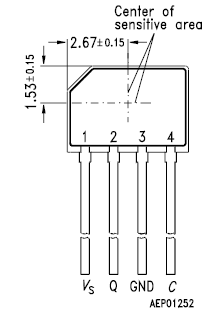

Connection Diagram


Specifications

TA = 40 to 125 °
Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage VS -40 30 V -
Output voltage VQ -0.7 30 V
Output current IQ - 50 mA -
Output revers current IQ - 50 mA -
Capacitor voltage VC -0.3 3 V -
Junction temperature
Junction temperature
Junction temperature		 Tj
Tj
Tj		 - 150
170
210		 °C
°C
°C
1000 h
40 h
Storage temperature Ts -40 150 °C
Thermal resistance
                             PSSO-4-1
Rth JA		 -
 190 K/W
Current through inputprotection
device
Current through outputprotection
device		 ISZ
IQZ		 -200 200
200		 mA
mA		 t < 2 ms ; v = 0.1
t < 2 ms ; v = 0.1



Description

The Differential Hall Sensor IC TLE4921-2 detects the motion of, and static position of, ferromagnetic and permanent magnet structures by measuring the differential flux density of the magnetic field. To detect ferromagnetic objects the magnetic field must be provided by a back biasing permanent magnet (southpole of the magnet attached to the back, unmarked, side of the IC package).

Using an external capacitor the generated Hall-voltage signal TLE4921-2 is slowly adjusted via an active high pass filter with low frequency cutoff. This causes the output to switch into a biased mode after a time constant is elapsed. The time constant is determined by the external capacitor. Filtering avoids aging and temperature influence from Schmitt-trigger input and eliminates device and magnetic offset.

The TLE4921-2 can be exploited to detect toothed wheel rotation in a rough environment. Jolts against the toothed wheel and ripple have no influence on the output signal. Furthermore the TLE 4921-2U can be operated in a two-wire - as well as in a three-wire-configuration.

The output is logic compatible by high/low levels regarding on and off.
