TLE49

Features: ·Static operation (zero speed)· Digital output signal· Two-wire and three-wire configuration possible· Large temperature range· Protection against overvoltage· Protection against reversed polarity· Output protection against electrical disturbancesApplicationTwo possible applications are ...

product image

TLE49 Picture
See larger image
SeekIC No. : 004521017 Detail

TLE49: Features: ·Static operation (zero speed)· Digital output signal· Two-wire and three-wire configuration possible· Large temperature range· Protection against overvoltage· Protection against reversed ...

TLE49 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE49
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Static operation (zero speed)
· Digital output signal
· Two-wire and three-wire configuration possible
· Large temperature range
· Protection against overvoltage
· Protection against reversed polarity
· Output protection against electrical disturbances


Application

Two possible applications are shown in figure 7 and 8 (Tooth and Magnet Wheel). The differences between two-wire and three-wire application is shown in figure 10.

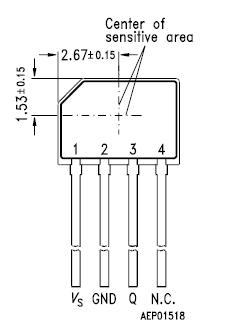

Pinout

Connection Diagram


Specifications

TA = 40 to 150 °C
Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage VS -40 30 V -
Output voltage VQ -0.7 30 V -
Output current IQ - 50 mA -
Output revers current IQ - 50 mA -
Junction temperature Tj - 150 V -
Junction temperature Tj - 170 °C 1000 h
Junction temperature Tj - 210 °C 40 h
Storage temperature Tstg -40 150 °C -
Thermal resistance Rth JA - 190 K/W -
Current through inputprotection
device
ISZ		 -
 200 mA t < 2 ms; v = 0.1
Current through inputprotection
device		 IQZ -200 200 mA t < 2 ms; v = 0.1



Description

The differential Hall sensor IC TLE49 detects the motion of, and static position of, ferromagnetic and permanent magnet structures by measuring the differential flux density of the magnetic field. To detect ferromagnetic objects the magnetic field must be provided by a back biasing permanent magnet (a magnet attached to the back, unmarked, side of the IC package).
