Product Details

Description



Features:


Output voltage tolerance £ ± 2 %
Very low current consumption
Early warning
Reset output low doown to VQ = 1 V
Overtemperature protection
Reverse polarity proof
Settable reset threshold
Very low drop voltage
Wide temperature range
Integrated pull up resistor at logic outputs





Pinout

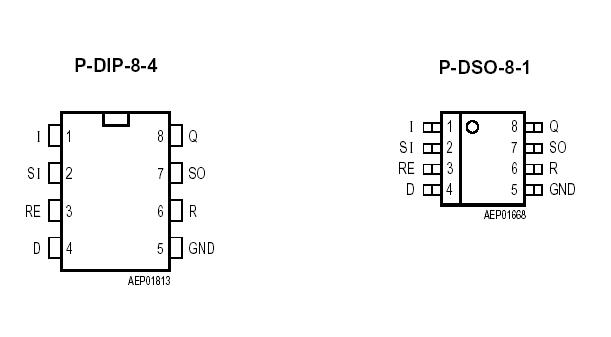

  Connection Diagram




Description

The TLE4269 is designed as one kind of 5-V low-drop fixed voltage regulator that is available in a P-DSO-8-1 package. The reset threshold voltage can be decreased by external connection of a voltage divider. Features of the TLE4269 are:(1)wide temperature range;(2)settable reset threshold;(3)overtem-perature protection;(4)very low-drop voltage;(5)reset output low down to VQ=1 V;(6);(7)reverse polarity proof;(8)early warning;(9)very low current consumption;(10)output voltage tolerance </=±2 %.

The absolute maximum ratings of the TLE4269 can be summarized as:(1)junction temperature:150;(2)storage temperature:-50 to +150;(3)operating range input voltage:45 V;(4)operating range junction temperature:-40 to +150;(5)5-V output voltage:-0.3 to 7 V;(6)5-V output current:-5 mA. If you want to know more information such as the electrical characteristics about the TLE4269, please download the datasheet in www.seekic.com or www.chinaicmart.com .
