Features:

• Output voltage tolerance ± 2%
• Very low current consumption
• Low-drop voltage
• Watchdog
• Settable reset threshold
• Overtemperature protection
• Reverse polarity protection
• Short-circuit proof
• Suitable for use in automotive electronics
• Wide temperature range

Pinout

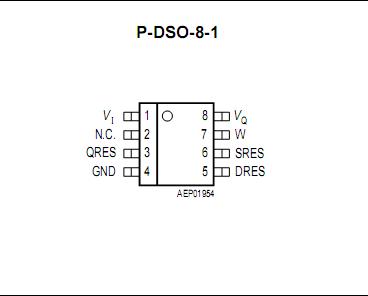

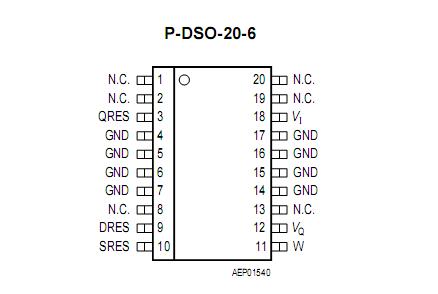

Connection Diagram

Specifications

T_j = 40 to 150 °C
Parameter	Symbol	Limit Values		Unit	Notes
Parameter	Symbol	min.	max.	Unit	Notes
Input
Input voltage Input current	V_I I_I	30	45	V	Internally limited
Reset Output
Voltage Current	V_R I_R	0.3	7	V	Internally limited
Reset Delay
Voltage Current	V_D I_D	0.3	7	V	Internally limited
Watchdog
Watchdog input	V_W	-0.3	7	V	-
Reset Input
Reset threshold	V_RE	-0.3	7	V	-
Output
Output voltage Output current	V_Q I_Q	0.3	7	V	Internally limited
Ground
Current	I_M	-100	50	mA	-
Temperatures
Junction temperature Storage temperature	T_j T_S	50	150 150	°C °C	-

Description

This TLE4268 is a 5-V low-drop fixed-voltage regulator. The maximum input voltage is 45V. It can deliver an output current of at least 180 mA. The IC is short circuit proof and features temperature protection that disables the circuit in the event of impermissibly high temperatures. The watchdog function is disabled as a function of the load, so that a controller is not interrupted during sleep mode by a watchdog reset.
