Product Details

Description



Features:

Features
 Output voltage tolerance £ ± 2 %
 Very low current consumption
 Low-drop voltage
 Overtemperature protection
 Reverse polarity proof
 Wide temperature range
 Suitable for use in automotive electronics
 Inhibit

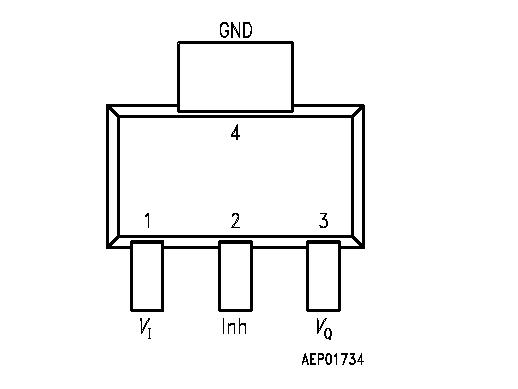

Pinout

Connection Diagram


Description

Functional Description
  TLE4266 is a 5 V low-drop voltage regulator in a P-SOT223-4-2 SMD package. The IC regulates an input voltage Vi in the range of 5.5 V < Vi < 45 V to VQrated = 5 V. The maximum output current is more than 120 mA. The IC can be switched off via the inhibit input, which causes the current consumption to drop below 10 mA. The IC is shortcircuitproof and incorporates temperature protection that disables the IC an overtemperature.
