Product Details

Description



Features:

Features
• High accuracy 5 V ± 2%
• Very low-drop voltage
• Very low quiescent current
• Low starting-current consumption
• Proof against reverse polarity
• Input voltage up to 42 V
• Overvoltage protection up to 65 V (£ 400 ms)
• Short-circuit-proof
• External setting of reset delay
• Integrated watchdog circuit
• Wide temperature range
• Overtemperature protection
• Suitable for automotive use
• EMC proofed (100 V/m)

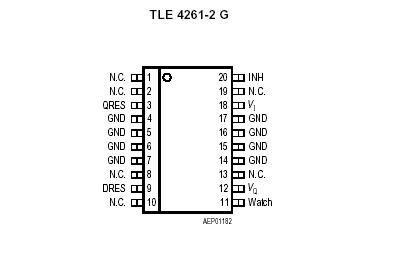

Pinout

Connection Diagram


Description

Functional Description
  TLE TLE4261-2 is a high accuracy 5-V low-drop voltage regulator in a P-TO220-7 or in a PDSOpackage. The maximum input voltage is 42 V (65 V/£ 400 ms). The device canproduce an output current of more than 500 mA. It is short-circuit-proof and incorporates temperature protection that disables the circuit at impermissibly high temperatures.
