Product Details

Description



Features:

(1) High-speed 16-bit CPU (900/L1 CPU)
· Instruction mnemonics are upward-compatible with TLCS-90/900
· 16 Mbytes of linear address space
· General-purpose registers and register banks
· 16-bit multiplication and division instructions; bit transfer and arithmetic instructions
· Micro DMA: Four-channels (444 ns/2 bytes at 36 MHz)
(2) Minimum instruction execution time: 111 ns (at 36 MHz)
(3) Built-in RAM: 6 Kbytes
  Built-in ROM: None
  Built-in Boot ROM: 2 Kbytes
(4) External memory expansion
· Expandable up to 16 Mbytes (shared program/data area)
· Can simultaneously support 8-/16-bit width external data bus
· Dynamic data bus sizing
(5) 8-bit timers: 6 channels
(6) 16-bit timer/event counter: 1 channel
(7) Serial bus interface: 2 channels
(8) 10-bit AD converter: 8 channels
(9) Watchdog timer
(10) Chip Select/Wait controller: 4 blocks
(11) Interrupts: 35 interrupts
· 9 CPU interrupts: Software interrupt instruction and illegal instruction
· 19 internal interrupts: 7 priority levels are selectable.
· 7 external interrupts: 7 priority levels are selectable.
  (Level mode, rising edge mode and falling edge mode are selectable.)
(12) Input/output ports: 53 pins
(13) Standby function
  Three halt modes: Idle2 (programmable), Idle1, Stop
(14) Operating voltage
· VCC · 2.7 V to 3.6 V (fc max 􀀠 36 MHz)
(15) Package
· 100-pin QFP: P-LQFP100-1414-0.50F


Pinout

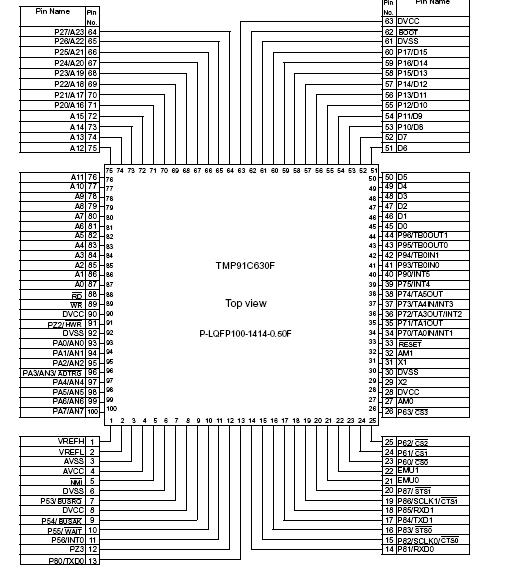

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage Vcc -�0.5 to 4.0 V
Input voltage VIN -�0.5 to V+� 0.5 V
Output current (per pin) IOL -2 mA
Output current (per pin) IOH -2 mA
Output current (total) IOL 80 mA
Output current (total) IOH -80 mA
Power dissipation (Ta =85°C) PD 600 mA
Soldering temperature (10 s) TSOLDER 260 °C
Storage temperature TSTG -�65 to 150 °C
Operating temperature TOPR -�40 to 85 °C
Note: The absolute maximum ratings are rated values which must not be exceeded during operation,
even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is
exceeded, a device may break down or its performance may be degraded, causing it to catch fire or
explode resulting in injury to the user. Thus, when designing products which include this device,
ensure that no absolute maximum rating value will ever be exceeded.


Description

large-scale equipment. 2 Kbytes of boot ROM is built-in. The standard name of this microcontroller is TLCS-900 with ROM code (7770).

The package of TLCS-900 is 100-pin flat type. The features are shown below.
