TLC976C

Features: · Correlated Double Sampling (CDS), AGC and High Speed 10-Bit ADC in a Single Package· 5-V Analog Power Supply and 3.3-V Digital Power Supply· Power Down Mode· 56-Pin TSSOP (DGG) Package with Multichip Module Assembly for IsolationApplication· PC Camera· Digital Camera· Camcorder·...

product image

TLC976C Picture
See larger image
SeekIC No. : 004520753 Detail

TLC976C: Features: · Correlated Double Sampling (CDS), AGC and High Speed 10-Bit ADC in a Single Package· 5-V Analog Power Supply and 3.3-V Digital Power Supply· Power Down Mode· 56-Pin TSSOP (DGG) Packa...

TLC976C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC976C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Correlated Double Sampling (CDS), AGC
  and High Speed 10-Bit ADC in a Single Package
· 5-V Analog Power Supply and 3.3-V Digital
  Power Supply
· Power Down Mode
· 56-Pin TSSOP (DGG) Package with
  Multichip Module Assembly for Isolation


Application

· PC Camera
· Digital Camera
· Camcorder
· CCD Scanner

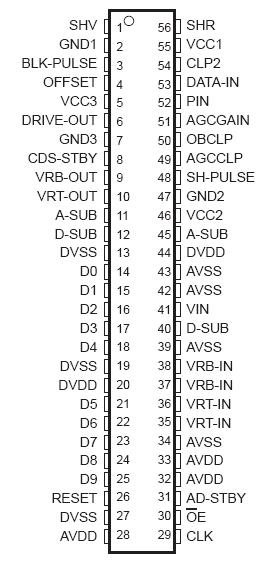

Pinout

Connection Diagram


Specifications

Analog supply voltage, VCC1, VCC2, VCC3, AVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 V to 7 V
Digital supply voltage, DVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.4 V to 7 V
Analog input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 V to AVCC1, 2,3 + 0.5 V
Continuous total power dissipation (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1344 mW
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltages are with respect to GND.
2. For operation above 25°C free-air temperature, derate linearly at the rate of 10.75 mW/°C.


Description

The TLC976C is a multichip module (MCM) subsystem designed for interfacing Charge-Coupled Device (CCD) in camcorder and digital camera systems. The TLC976C includes correlated double sampler (CDS), automatic gain control (AGC), black level clamp circuit, 10 bit, 20 MSPS analog-to-digital converter (ADC), and internal reference voltage generator for ADC.

The CDS/AGC can be connected directly to the ADC input or a separate signal can be connected directly to the ADC input. A power-down mode is provided.


Assembled using the MCM process, the TLC976 provides isolation between the noisy digital domain and the noise sensitive analog signals. The CDS/PGA, black level clamps are on one die and the ADC is on a separate die. The separate dies significantly reduce the substrate noise to the analog section.

The TLC976C comes in a 56-pin TSSOP package with 0,50 mm pin pitch. This is about 25% smaller than using two separate 32-pin quad flat packs (QFP).
