Product Details

Description

Features:

Easy Microprocessor Interface
On-Chip Data Latches
Digital Inputs Are TTL-Compatible With 10.8-V to 15.75-V Power Supply
Monotonic Over the Entire A/D Conversion Range
Fast Control Signaling for Digital Signal Processor (DSP) Applications Including Interface With TMS320
CMOS Technology

Pinout

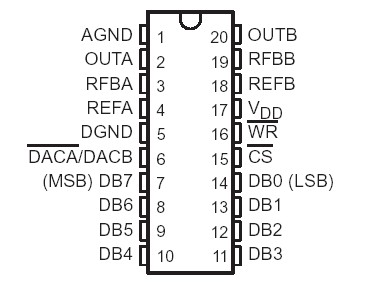

Connection Diagram

Specifications

Supply voltage range, V_DD (to AGND or DGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 17 V
Voltage between AGND and DGND . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .V_DD
Input voltage range, VI (to DGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3 V
Reference voltage range, V_refA or V_refB (to AGND) . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . .±25 V
Feedback voltage range, V_RFBA or V_RFBB (to AGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±25 V
Output voltage range, V_OA or V_OB (to AGND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±25 V
Peak input current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .10 A
Operating free-air temperature range, T_A: TLC7628C . . . . . . . . . . . . . . . . . . . . . . .. . .0°C to 70°C
TLC7628I . . . . . . . . . . . . . . . . . . . . . . . . .25°C to 85°C
TLC7628E . . . . . . . . . . . . .. . . . . . . . . . .40°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Case temperature for 10 seconds, TC: FN package . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: DW or N package . . . . . . . . .260°C

Description

The TLC7628C, TLC7628E, and TLC7628I are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. Data is transferred to either of the two DAC data latches through a common, 8-bit input port. Control input DACA/DACB determines which DAC is loaded. The load cycle of these devices is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest.

The TLC7628C operates from a 10.8-V to 15.75-V power supply and is TTL-compatible over this range. 2- or 4-quadrant multiplying makes these devices a sound choice for many microprocessor-controlled gain-setting and signal-control applications.

The TLC7628C is characterized for operation from 0°C to 70°C. The TLC7628I is characterized for operation from 25°C to 85°C. The TLC7628E is characterized for operation from 40°C to 85°C.
