TLC7524E

Features:

* Easily Interfaced to Microprocessors
* On-Chip Data Latches
* Monotonic Over the Entire A/D Conversion Range
* Segmented High-Order Bits Ensure Low-Glitch Output
* Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524
* Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320
* CMOS Technology

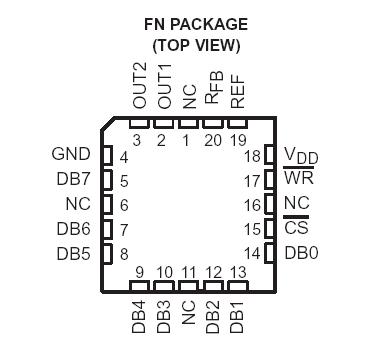

Pinout




Specifications

Supply voltage range, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . . . . . .  . . 0.3 V to 16.5 V
Digital input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . . .  .0.3 V to VDD + 0.3 V
Reference voltage, Vref . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . .   . . . . . . . . .  . . .. . . . . . . . .±25 V
Peak digital input current, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .  . .  . . . . . . . . 10 mA
Operating free-air temperature range, TA: TLC7524C. . .  . . . . . . . . .  . . . . . . . . . . . . . . 0°C to 70°C
TLC7524I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .  . . . . . . . . .  . . . . . . . .25°C to 85°C
TLC7524E  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .  . . . . . . . . .  . . . . . . . .. .40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . .  . . . . . . . . .  . . . . . . . . .  . . . . . . . . 65°C to 150°C
Case temperature for 10 seconds, TC: FN package  . . . . . . . . . . .. . . . . . .. . . . . . . . . . . . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, or PW package  . . . .  . . 260°C


Description

The TLC7524C, TLC7524E, and TLC7524I are CMOS, 8-bit, digital-to-analog converters (DACs) designed for easy interface to most popular microprocessors.

The TLC7524Es are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, which produce the highest glitch impulse. The devices provide accuracy to 1/2 LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5 mW typically.

Featuring operation from a 5-V to 15-V single supply, these TLC7524Es interface easily to most microprocessor buses or output ports. The 2- or 4-quadrant multiplying makes these devices an ideal choice for many microprocessor-controlled gain-setting and signal-control applications.

The TLC7524C is characterized for operation from 0°C to 70°C. The TLC7524I is characterized for operation from 25°C to 85°C. The TLC7524E is characterized for operation from 40°C to 85°C.
